Installing new Ortofon 2m red cartridge in the Technics SL-1900

Yesterday I received my new cartridge: the Ortofon 2m red. It came with a brush, some screws and a little screwdriver. All in the package for €84,-

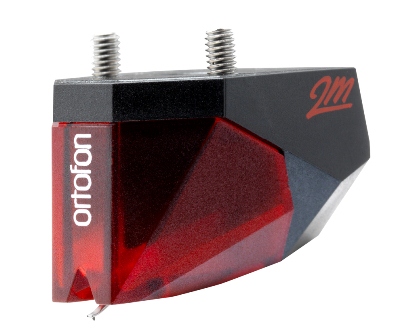

2M Red Verso hifisiteI couldn’t wait for a day off to try it so I installed it yesterday evening. I have never before installed a cartridge, and I must admit the thought of doing so was a bit daunting.

I had read a lot about installing and adjusting phono cartridges in the past few weeks so I understood the basics. I had downloaded the Technics protractor from vinylengine.com, printed it and checked the scale of the print. But now it was time to put the theory into practice.

headshell_old

My old-style head shell

I soon realized that this new cartridge wouldn’t fit in the headshell I had designated for it. This is an old style Technics head shell with one screw on the top.

Although only one screw is visible in the picture, it has an additional mounting bracket underneath that should fit the 2 screws necessary to mount normal cartridges. But my Ortofon needs to have the heads of the screws on the topside and that is not supported in this headshell.

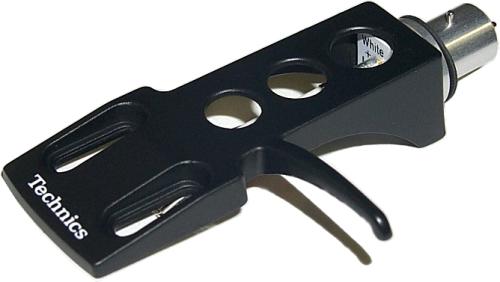

But fortunately I have two headshells, the other one is the newer type which has the normal two screwholes at the top. Using the screws which were provided in the package I was able to quickly attach the cartridge provisionally to the headshell.



new style headshell

new style headshell

So that was fairly easy. Next was the task of adjusting the ‘contraption’ 😀 I took my protractor and put it on the turntable on top of a record.

I soon learned that when I moved the cartridge all the way to the front of the shell that the needle followed the ‘arc’ on the protractor perfectly. Yes!

IMG_20131219_212926

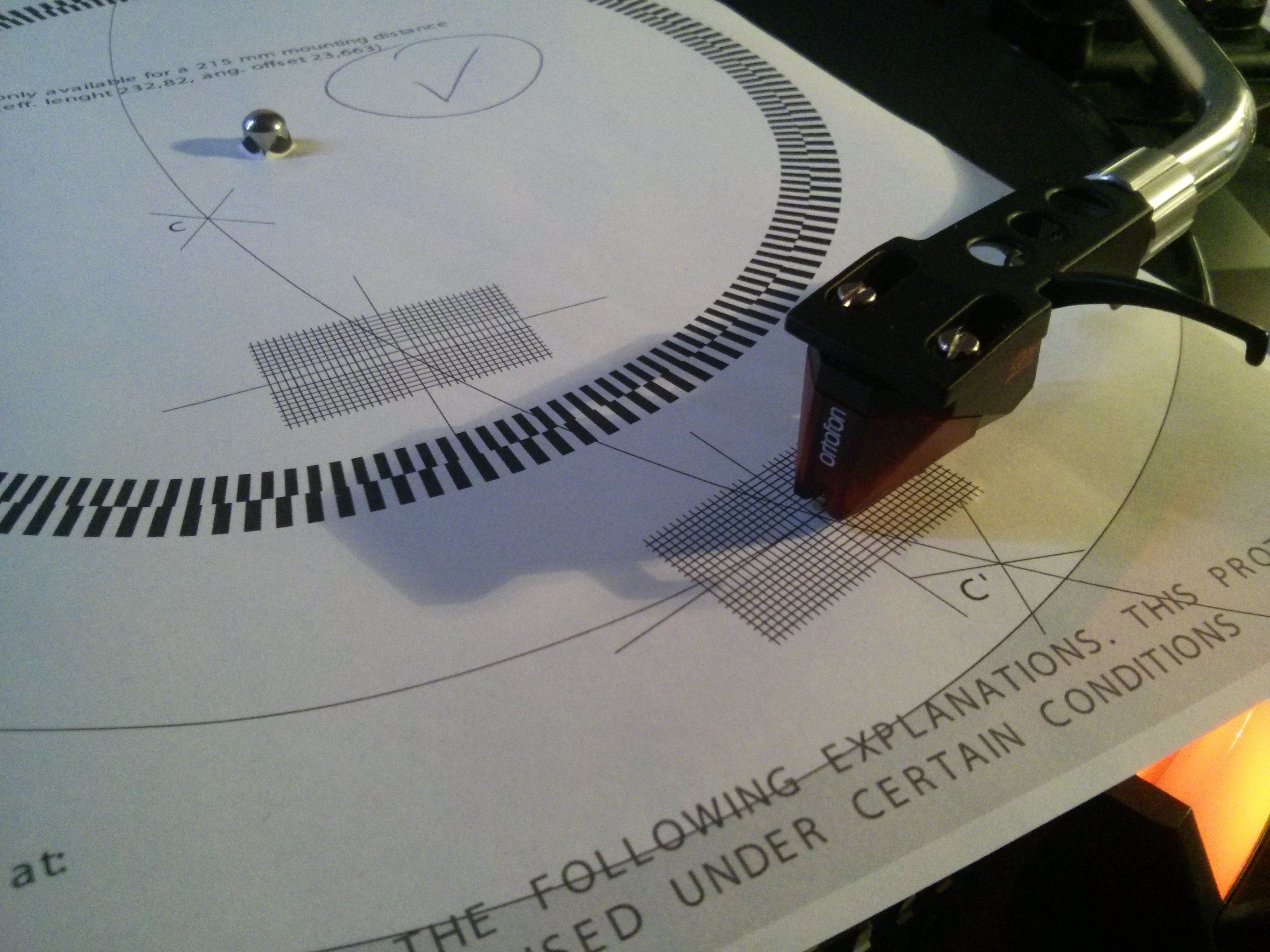

using the protractor

But when I tested the alignment of the cartridge on the two gridline patterns on the protractor, I found that it was not perfect in line. So I adjusted it very slightly to the point that it was in line on both patterns and then secured the screws. Pfew! Job done!





yes-90125

Yes – 90125



Then came the testing. I must admit I was a little but afraid, or better anxious. I tried it out with a record from Yes – 90125.

I put the needle down very very carefully.

I put on my headphones.

But as soon as the first tones from the song (Owner Of A Lonely Heart) were played, I relaxed. It sounded very very good!

IMG_20131219_212756

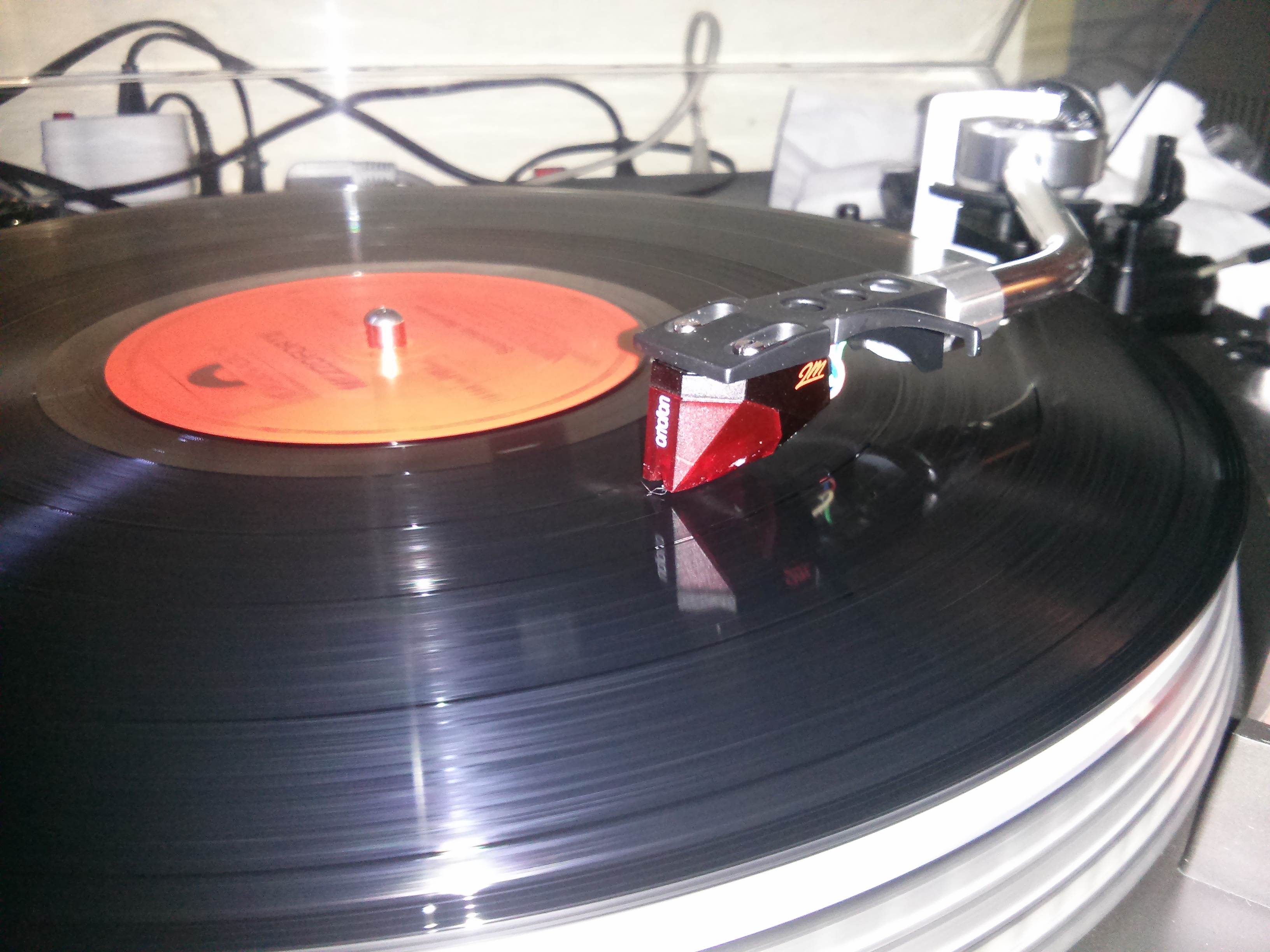

The Ortofon happily playing in my sl-1900

There is a lot of definition in the sound. There is also a lot of ‘punch’, which I like. HF tones are also ok. Bass is tight and well defined. Overall, I have never ever heard a record sound so clear. True, in the past I have not had good quality turntables. In fact, they were rubbish. But I never thought a record could sound like this. It is so close to a CD. I’m also very glad that I treated my records carefully in the past, I didn’t play them a lot (I immediately recorded them onto tape) so that I now have old, but ‘like new’ records that sound wonderful!

I continued to listen to albums from ELO, Marillion, Tchaikovsky and 12-inch’s from Chaka Khan, Unique (What I Got IS What You Need). Those were the first records I found for grabs. It was a good experience. I am pleased. In the coming evenings I will listen to some other albums.

I was surprised how quickly and how easily an inexperienced person like myself could do this task. It took me a little over an hour including the adjustments. I can recommend it to everyone.

Coming up next: cleaning the records with a LP cleaner

New arrival: Technics SL-1900 turntable

This week I picked up a Technics SL-1900 turntable

1900

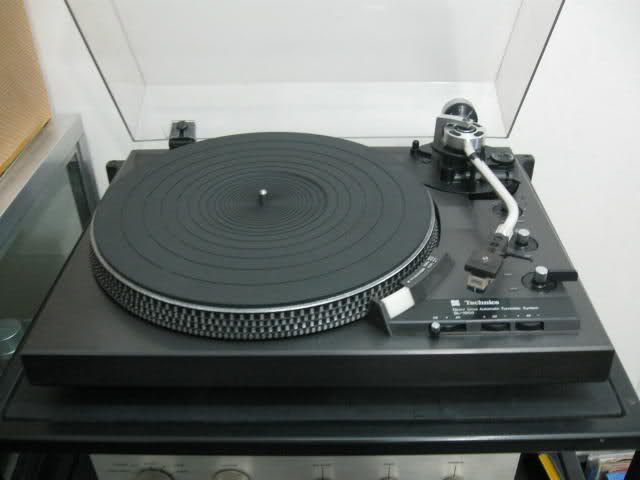

Technics SL-1900 (image borrowed from internet)

I was actually looking for a more high end model, like the Technics SL-1600Mk2, SL-1700Mk2, 1800Mk2 or even an SL-5300. But, those are hard to find, and when found, are very expensive and could cost more than €200,-. I found a very inexpensive SL-1900. It still had the original Technics 270 cartridge installed. And it came with an additional 270 cartridge without a needle. So I thought ‘oh, what the heck’, and I went to get it.

I was not disappointed. Not at all. In fact, I was very impressed. For the last years I have used a Dual cs-607, so that was my reference. And although the Dual has more definition, this one is more agreeable to listen to because….well, it has less definition. It doesn’t reveal all the noises and scratches and clicks and pops from the record so much as the Dual does. Compared to the Dual it lacks highs though.

UPDATE:

Please read the next post on how I installed an Ortofon Red cartridge in this turntable. https://www.reeltoreel.nl/blog/?p=364

Some information from internet:

Description

The Technics SL-1900 is a 2-speed, direct-drive turntable with fully automatic single disc playback. A one-chip IC, incorporating 321 elements, controls motor speed for superb accuracy with servo control. The tonearm mechanism gives convenient automatic set-down, lift-off and stop. Memo-repeat control permits up to six repeated plays of the record, or continuous play. The heavy monolithic bas and isolator system protects against external vibrations. The SL-1900 comes complete with an EPC-270C-II moving magnet phono cartridge.

Some specs:

  • Brand: Technics
  • Model: SL-1900
  • Manufacturing year: 1977
  • Made in: Japan
  • Colour: Braun
  • Power: 4,5 Watt
  • Dimensions: 137 x 430 x 334mm
  • Weight: 7,2 kg
  • Original price ca.: $400,-
  • Direct Drive
  • Fully automatic operation
  • Platter: 310mm aluminium diecast
  • Speeds: 33 and 45rpm
  • Wow and flutter: 0.03% WRMS
  • Rumble: -73dB
  • Tonearm: universal, static balanced
  • Effective length: 230mm
  • Overhang: 15mm

und auf Deutsch:

Technische Daten

  • Antrieb: Direktantrieb
  • Motor: Gegenelektromotorische-Kraftfrequenz-Generator Servo Gleichstrommotor
  • Drehzahl: 33 1/3 und 45 U/min
  • Gleichlaufschwankungen: 0,03% WRMS (JIS C5521), ±0,042% bewertet Null-zu-Spitze (DIN 45507)
  • Rumpelgeräuschabstand:
    • DIN 45539A: 50 dB
    • DIN 45539B: 73 dB
  • Plattenteller: Aluminium-Spritzguss, 310 mm
  • Betriebsart: Automatisch oder manuell
  • Pitch: ±5%
  • Tonarm: Rohrarm, statisch balanciert
    • Nadelauflage: 0 – 3 g
    • effektive Achslänge: 230 mm
    • Überhang: 15 mm
    • Kröpfungswinkel: 21,5°
    • Reibung: 7mg (horizontal und vertikal)
    • Spurfehlwinkel: Innerhalb + 3 (145mm vom Mittelpunkt), + 1 (55mm von Mittelpunkt)
    • Gewichtsbereich für Tonabnehmer: 5,5 – 9,5 g
    • Gewicht des Tonarmkopfes: 9,5 g
  • Tonabnehmer: Technics EPC-270 C-II (MM)

Besondere Ausstattungen

  • Aufsetztpunkt: Einstellbar für 12″,10″ und 7″ Schallplatten
  • Memo-Repeat: wiederholtes Abspielen von ein- bis sechsmal, oder dauernd wiederholendes Abspielen einstellbar
  • Schwergewichts-design: Schweres Polymer-Unterchassis auf Viscoelastisch gedämpften Stahlfedern
  • Motor-Rotor ist direkt mit dem Plattenteller verbunden (war damals von Technics entwickelt worden)
  • Elektronisch gesteuert mit damals revolutionärem One-Chip-IC AN 630
  • hochempfindlicher Tonarm mit Kardan-Aufhängung in Präzisionszapfenlagern. Damals ebenso aussergewöhnlich.
  • Viscogedämpfte Tonarmsteuerung und Anti-skating – damals ein Novum ebenso wie die dicken, kapazitätsarmen Phonokabel.

Information about the cartidge:

Allgemein

  • Hersteller: Technics
  • Modell: EPC-270C-II
  • Baujahre: zum 1976
  • Hergestellt in:
  • Farbe:
  • Gewicht: 6,0 g
  • Neupreis ca.:

Technische Daten

  • Prinzip: MM
  • Frequenzgang: 20 – 15.000 Hz (±2 dB)
  • Kanaltrennung:
  • Kanalbalance: 2 dB (1 kHz)
  • Übersprechdämpfung: 25 dB (1 kHz), 20 dB (10 kHz)
  • Ausgansspannung:
    • 1 kHz, Höchstamplitude: 3,2 mV
    • DIN 45500: 6,4 mV
  • Abschlusswiderstand: 47 kOhm – 100 kOhm
  • Induktion:
  • Nadeltyp: Diamant elliptisch
  • Empfohlene Auflagekraft: 1,75 ±0,25 g
  • Nadelnachgiebigkeit: 12x 10^-6 cm/dyn

Checking out dbx encoded discs (vinyl)

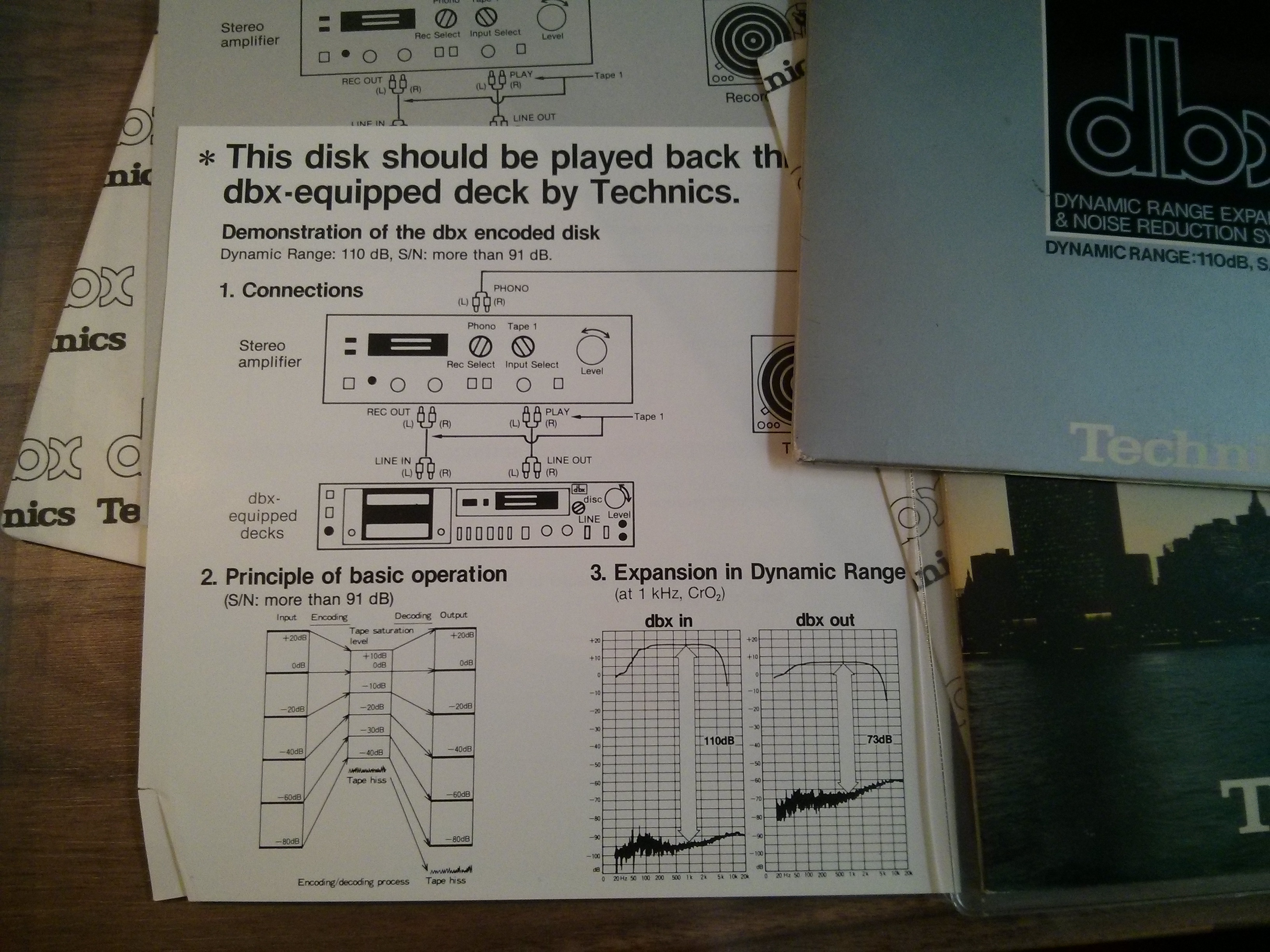

The other day I received two dbx encoded 7″ singles, demonstration discs by Technics. These are supposed to have superior dynamic range and almost no noise/hiss/rumble whatsoever.

IMG_20131203_151004

IMG_20131203_150842

IMG_20131203_150830

First some background:

dbx was also used on vinyl records, from 1973 until around 1982, and over 1100 albums were released with dbx encoding, which were known as dbx discs. When employed on LPs, the dbx Type-II system reduced the audibility of dust and scratches, reducing them to tiny pops and clicks (if they were audible at all) and also completely eliminated record surface noise. dbx encoded LPs had, in theory, a dynamic range of up to 120db.[3] In addition, dbx LPs were produced from only the original master tapes, with no copies being used, and pressed only on heavy, virgin vinyl. Most were released in limited quantities with premium pricing. [wikipedia][

Well, the accompanying sheet suggest that you hook your equipment up to a dbx capable (cassette) deck, but I didn’t. Instead, I connected my dbx model 150 unit. Better!

On all 4 sides was music, mostly jazz-like. On side A of the first disc was an impressive dynamic piece with flute and big drums. I was very surprised when the drums reached full power! And they go very loud! It is an extremely dynamic experience. Even on headphones.

Clicks and pops  and other vinyl noise are so unnoticeable, the whole listening experience is very, very enjoyable. Even the dropping of the needle was hardly audible. Now, I need to find me some other dbx encoded discs!

edit: while writing this down, I’m thinking about what would happen if I record this on a tapedeck with dbx encoding.
Or better: skip the decode and encode step, and record the disc as-it-is on tape, and the play it back through my dbx unit….interesting experiment. I should try that some time.
