AEG Magnetophon AW-2

A very good acquaintance gave me some recorders recently. Among them was this beauty: The AEG Magnetophon AW-2.

aeg_1

As you can see, this recorder is from 1951 and is more than 65 years old! This particular device that I have was used in cinemas for sound reproduction. It sits in a suitcase for easy carrying around. It is quite heavy though. It uses platters and pancakes.

aeg_2

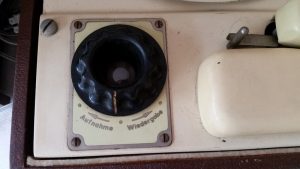

aufname und wiedergabe switch

aeg_3

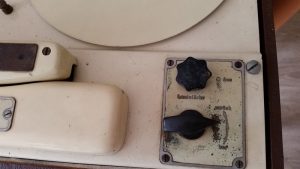

on/off-volume and play/rewind switch

It is in a very reasonable condition. So far nothing seems to be broken beyond repair. My goal is to try to restore it so that it plays tapes again. I have not turned it on yet, it first needs a lot of TLC.
It appears that when used with ‘modern’ tape, this unit will nowadays produce stunning results that would exceed what would have been achieved back then.

For instance, there are three very heavy duty belts in this one motor machine. And with belt I mean like belt from a car engine. They are not in a condition to be used again, so these will have to be replaced. Also some of the electronic components, like capacitors and rectifiers are way beyond their normal operating life so they will have to go too. And then everything else that I will run into. Hopefully the tubes, there are a few, still work.

I have started to open the device up and clean it.
p1040011

p1040012

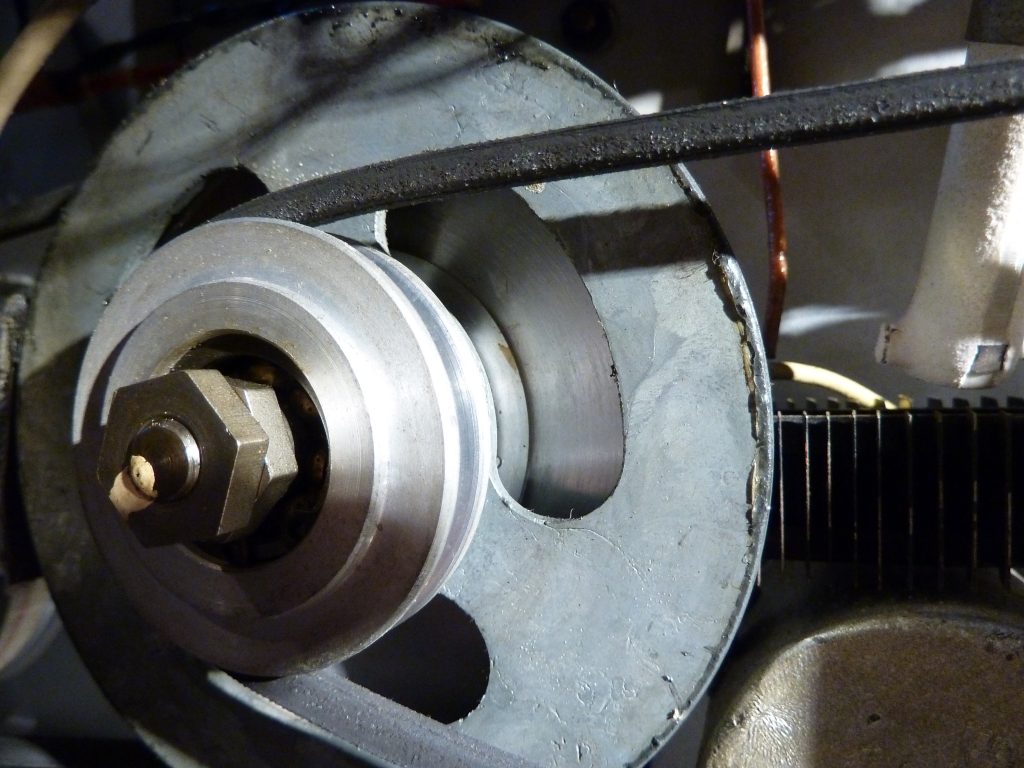

Immense belt

p1040019

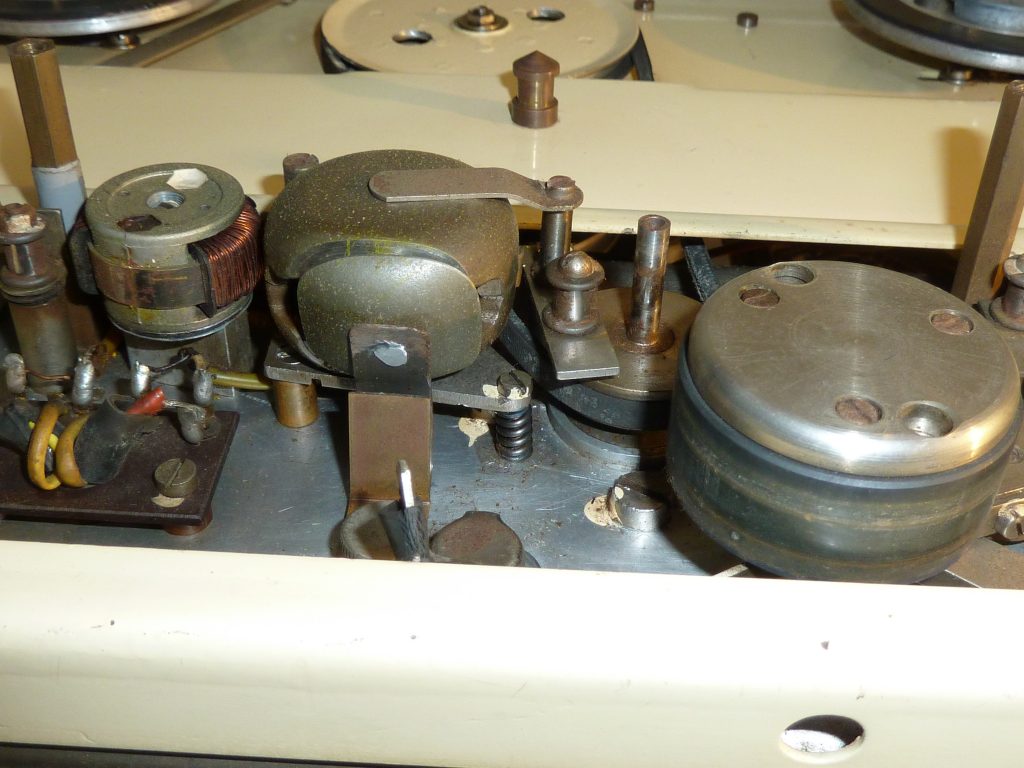

fltr: erase, r/w head capstan and pinchroller

the heads:

p1040018

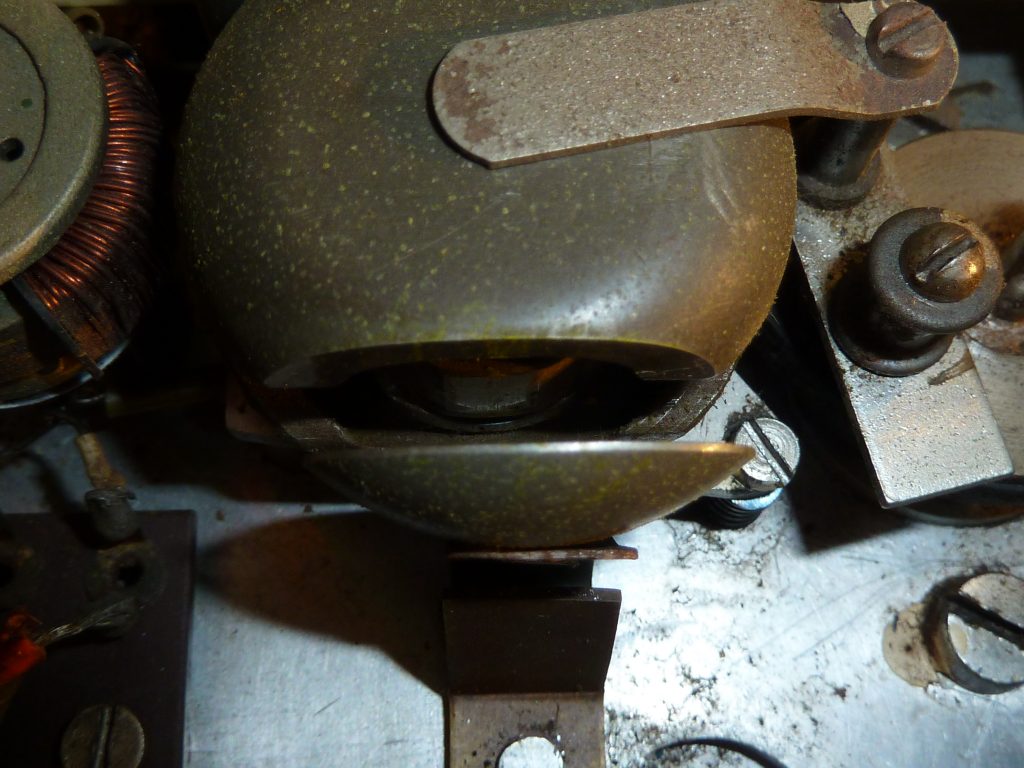

somewhere in this shell is the head

p1040017

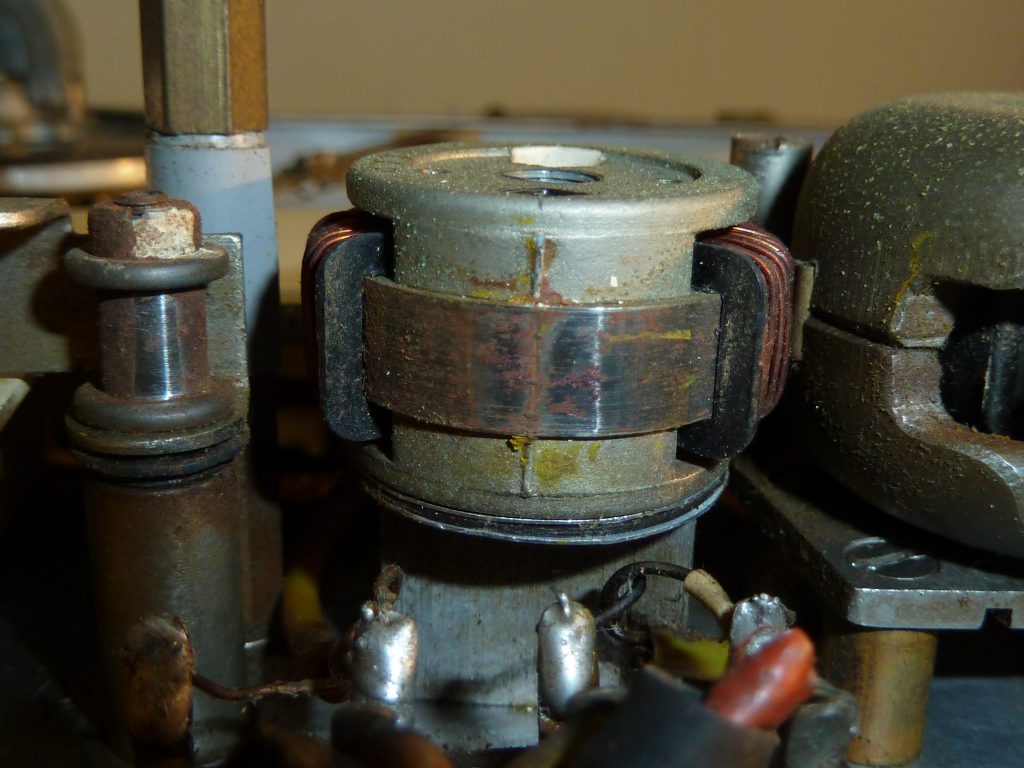

erase head before cleaning

p1040022

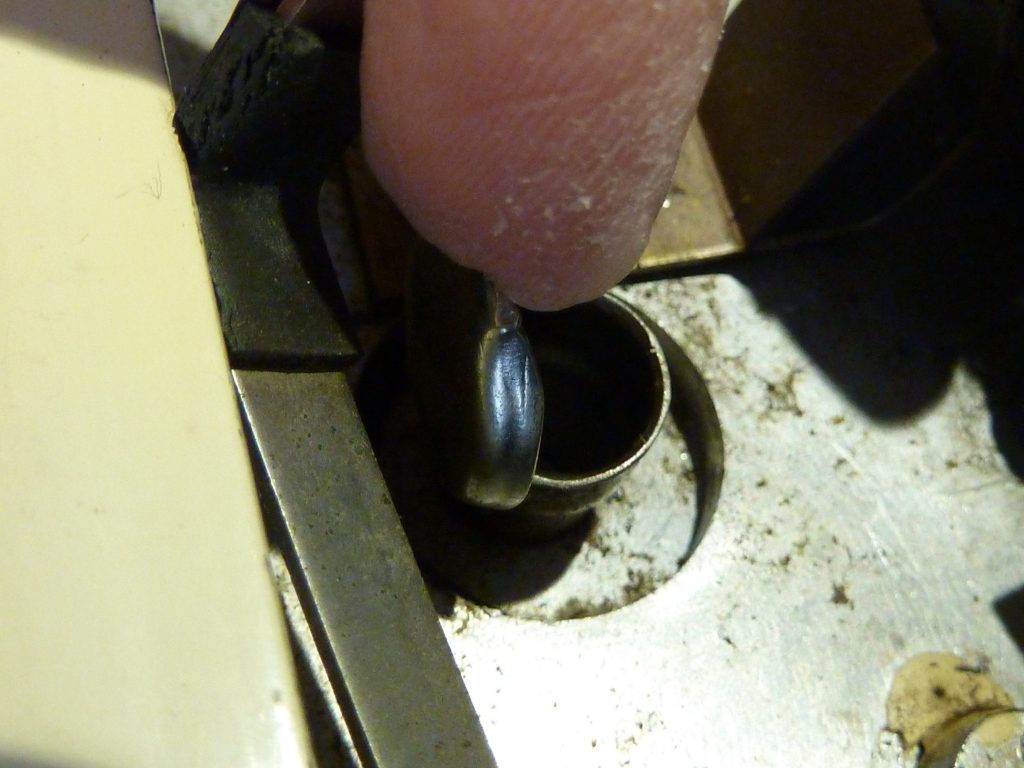

oil’s well!

There are of course a lot of electrical components as well that need to be replaced. The first and foremost candidates are the capacitors, as there are certain types that don’t last for so long.


The device contains some paper-oil capacitors, like this one:



This will certainly have to be replaced before I can switch it on. I am told that ones like this will probably be ok:

The device is really beautifully made. When I ventured inside I fell in love with it more and more. But there are a few ‘minor’ issues to be resolved, like: where is this supposed to be connected?

I was told that this rectifier could go up in (probably very nasty) smoke:

So I will need to figure out how to replace it.

Fortunately I have got the electrical diagram:
