Leopard 2

Training in Amersfoort

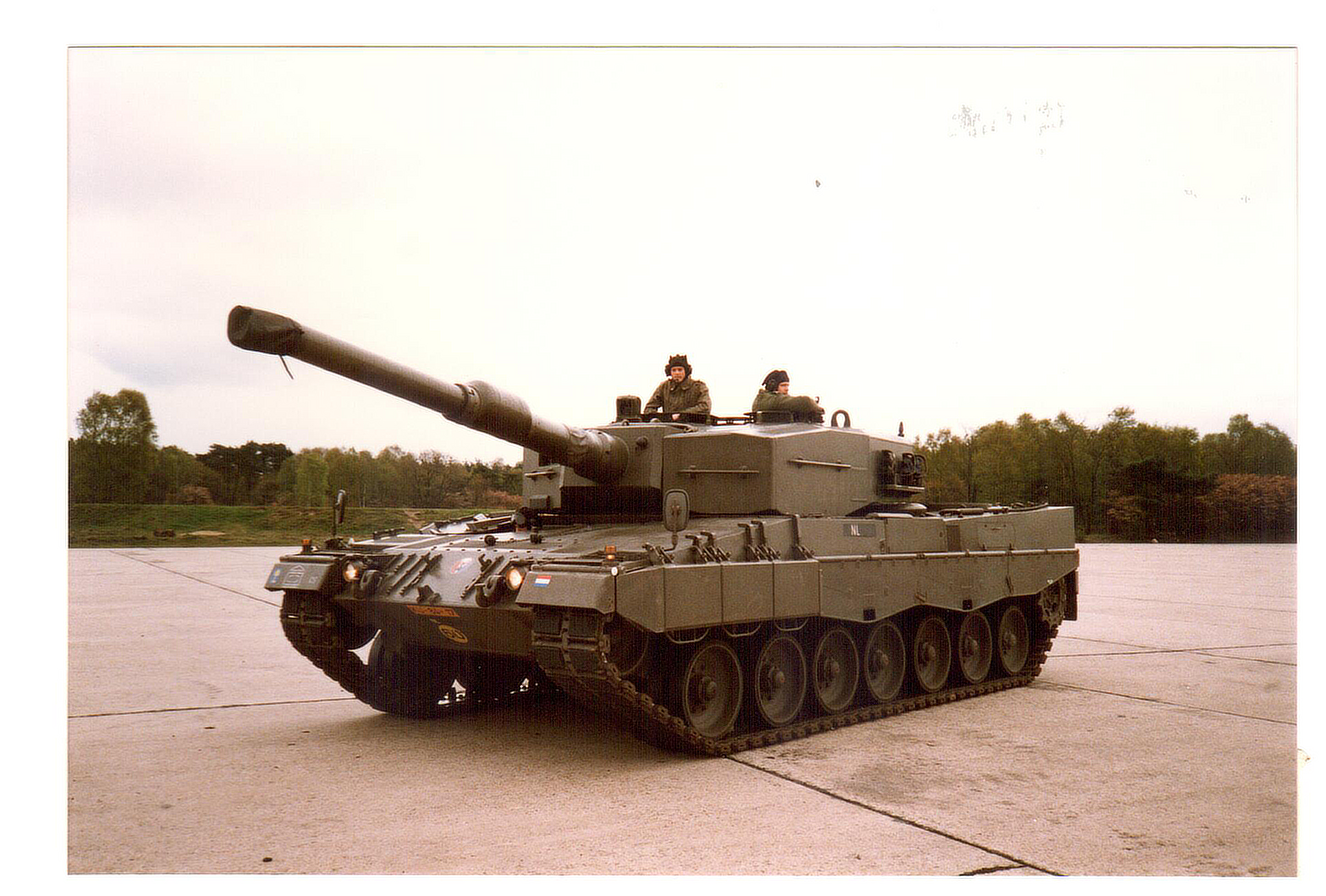

I had my training in Amersfoort. To begin we had a lot of theoretical lessons. These pictures were taken during our first encounter up close with a Leopard 2:

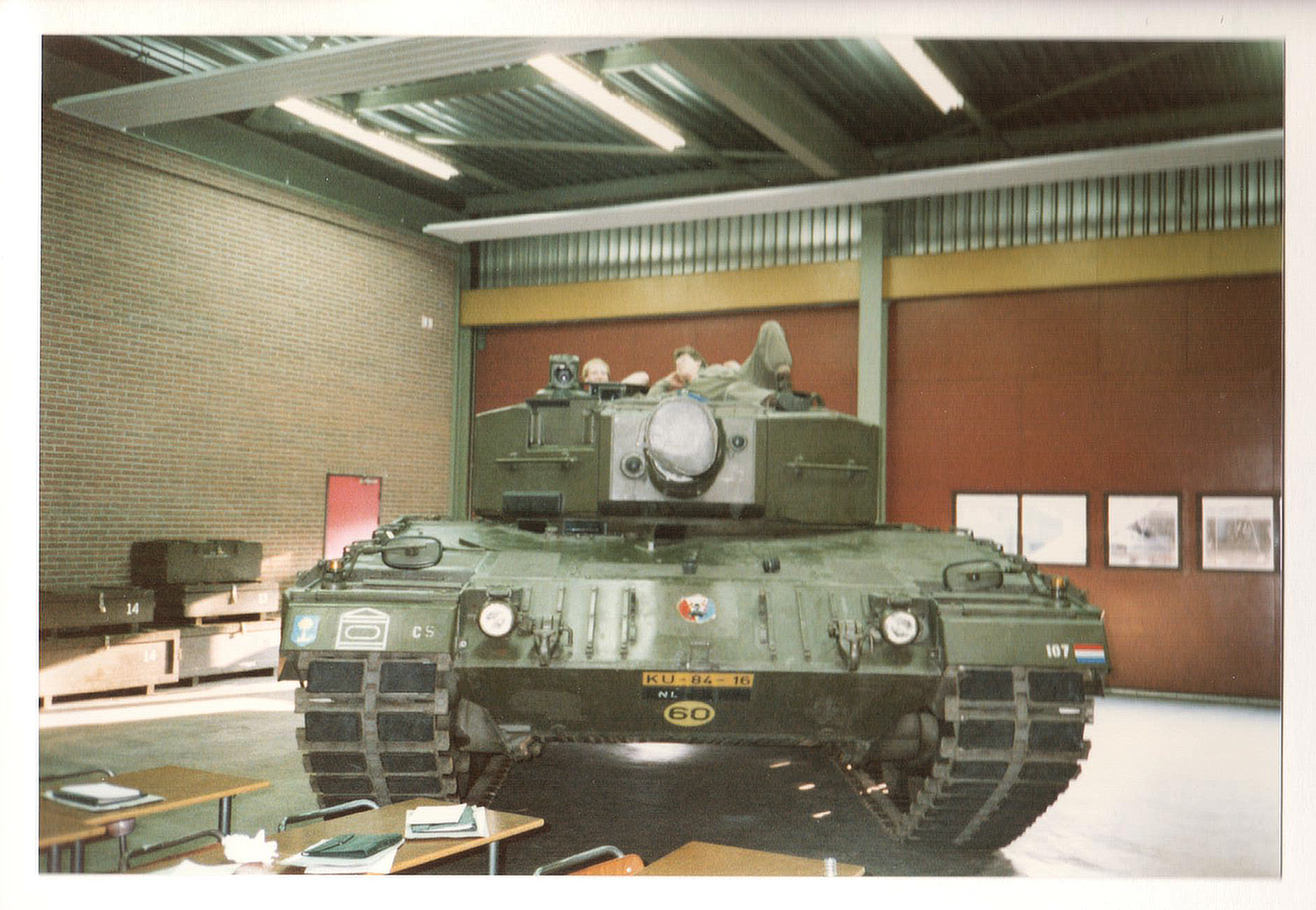

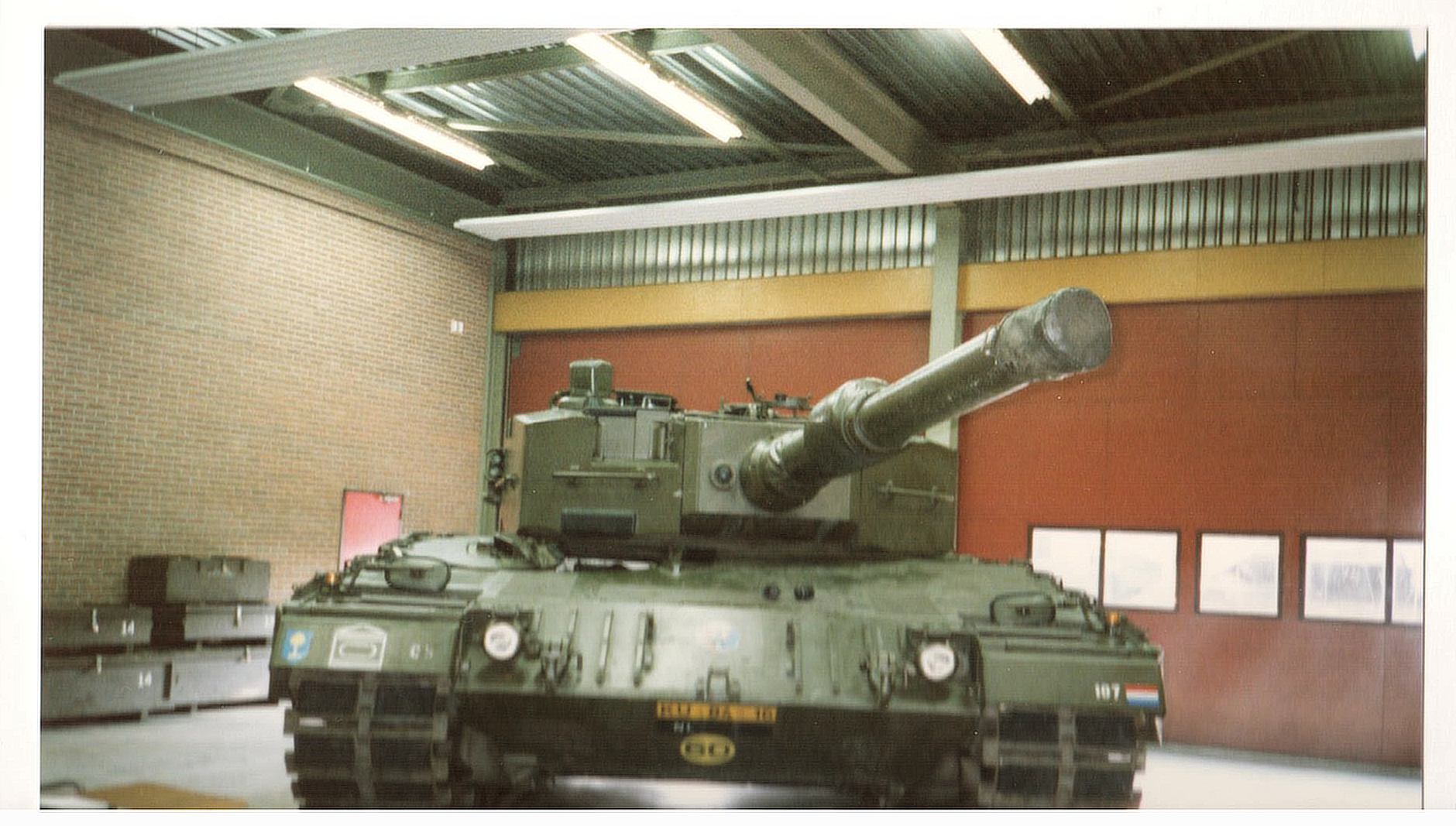

First encounter with the beast, parked right there in the classroomAfter weeks of training, we went riding with it:

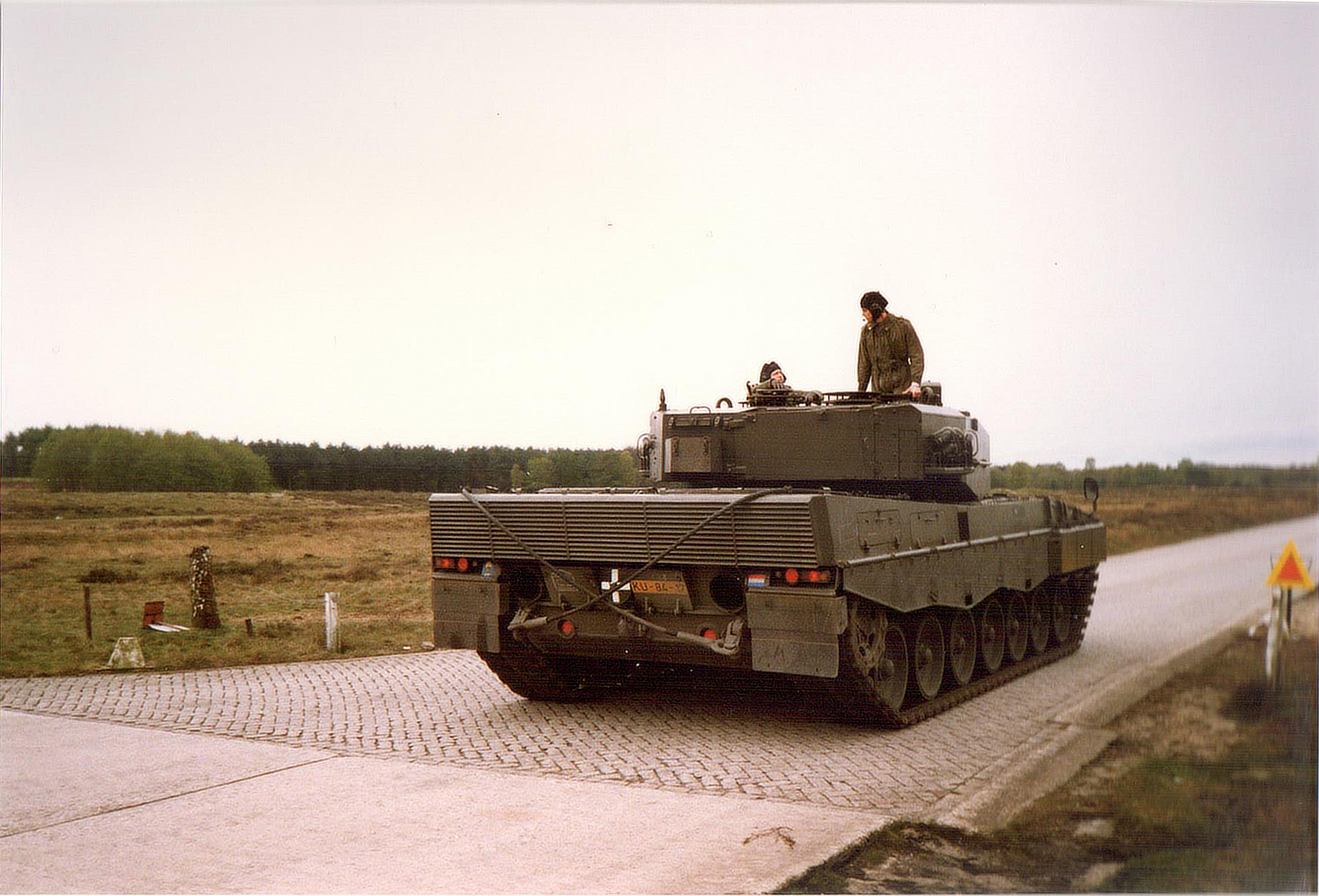

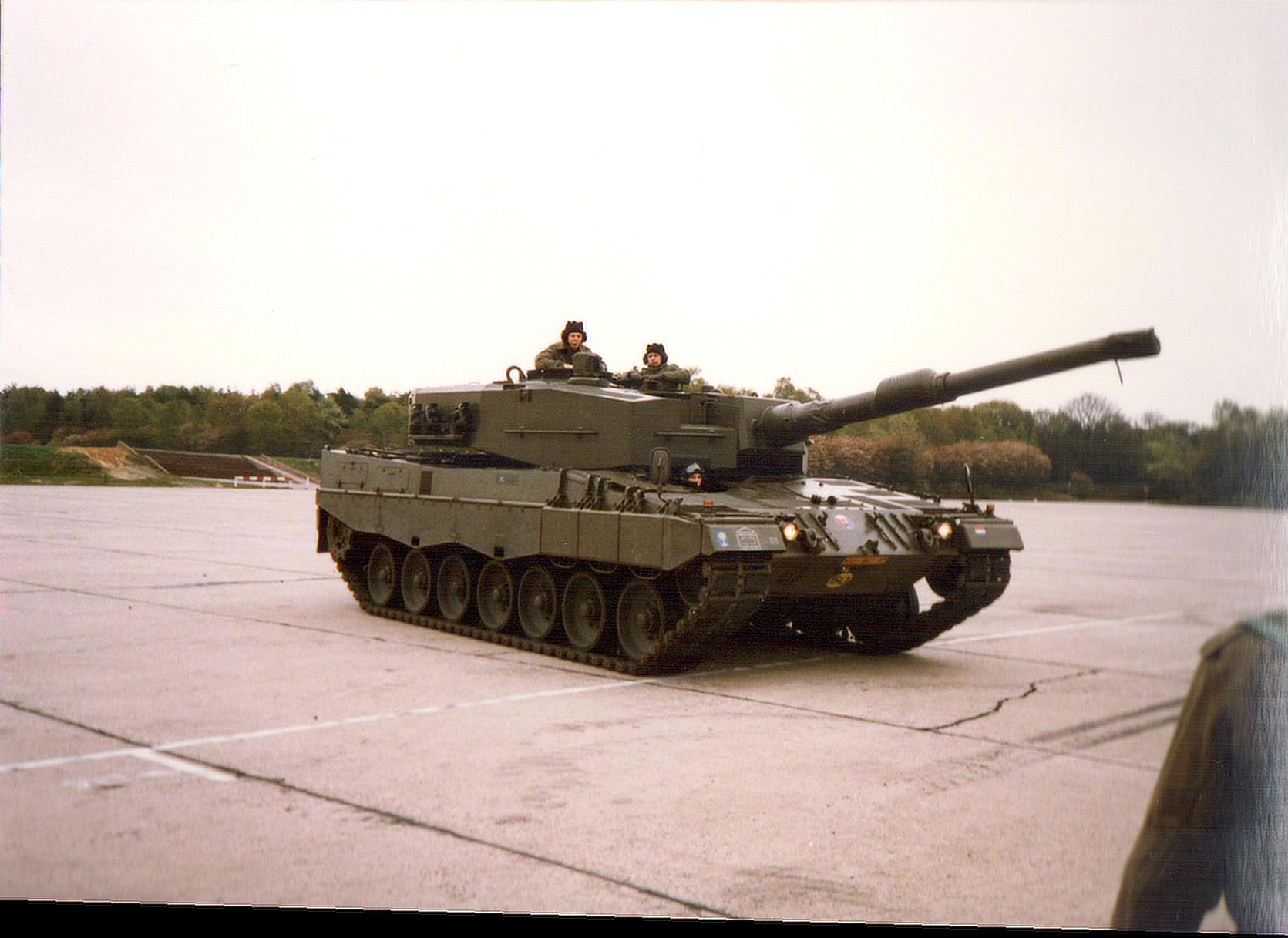

learning to guide the tank backwards from the command hatch.And finally, after weeks and weeks, we went on exercise with it:

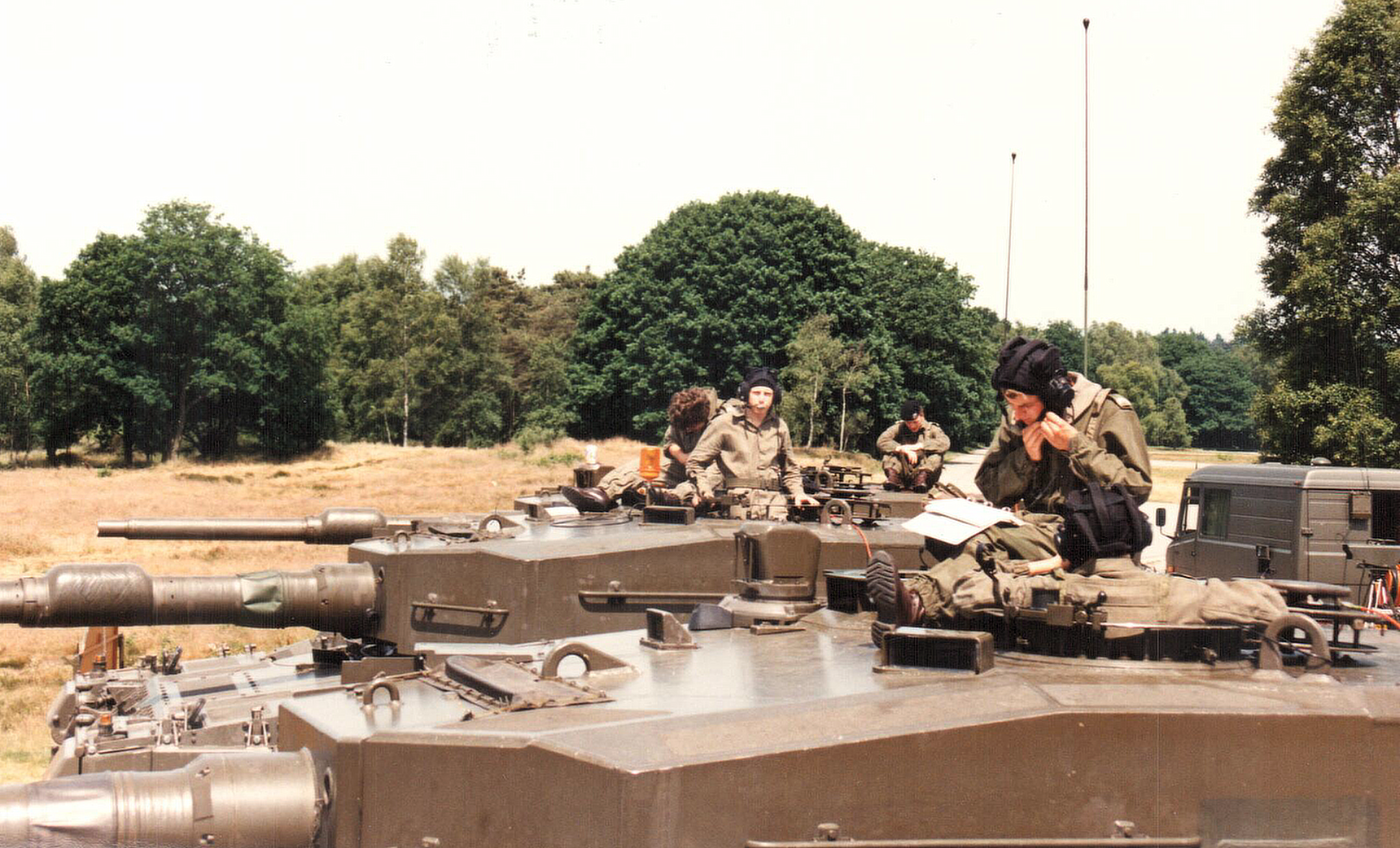

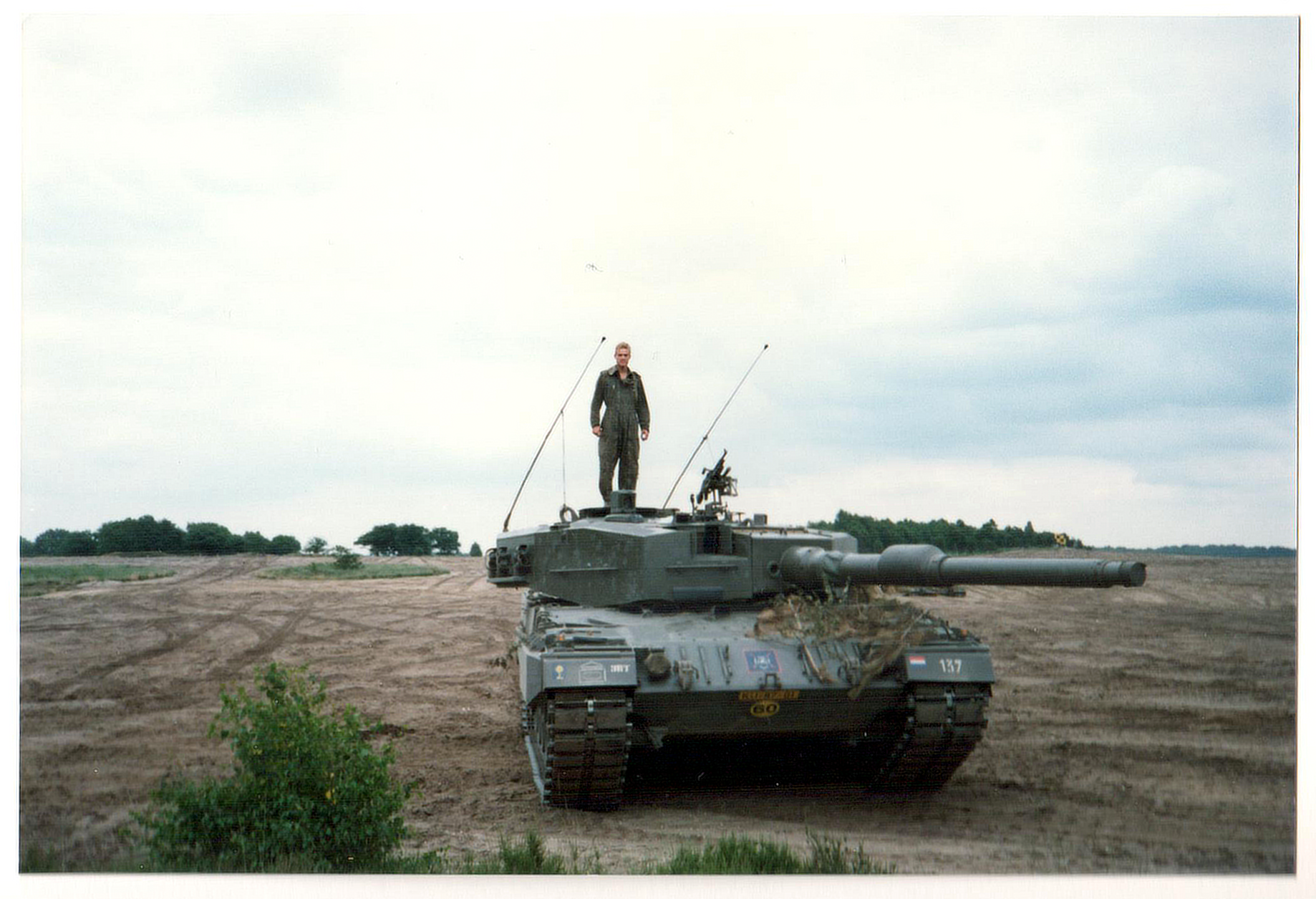

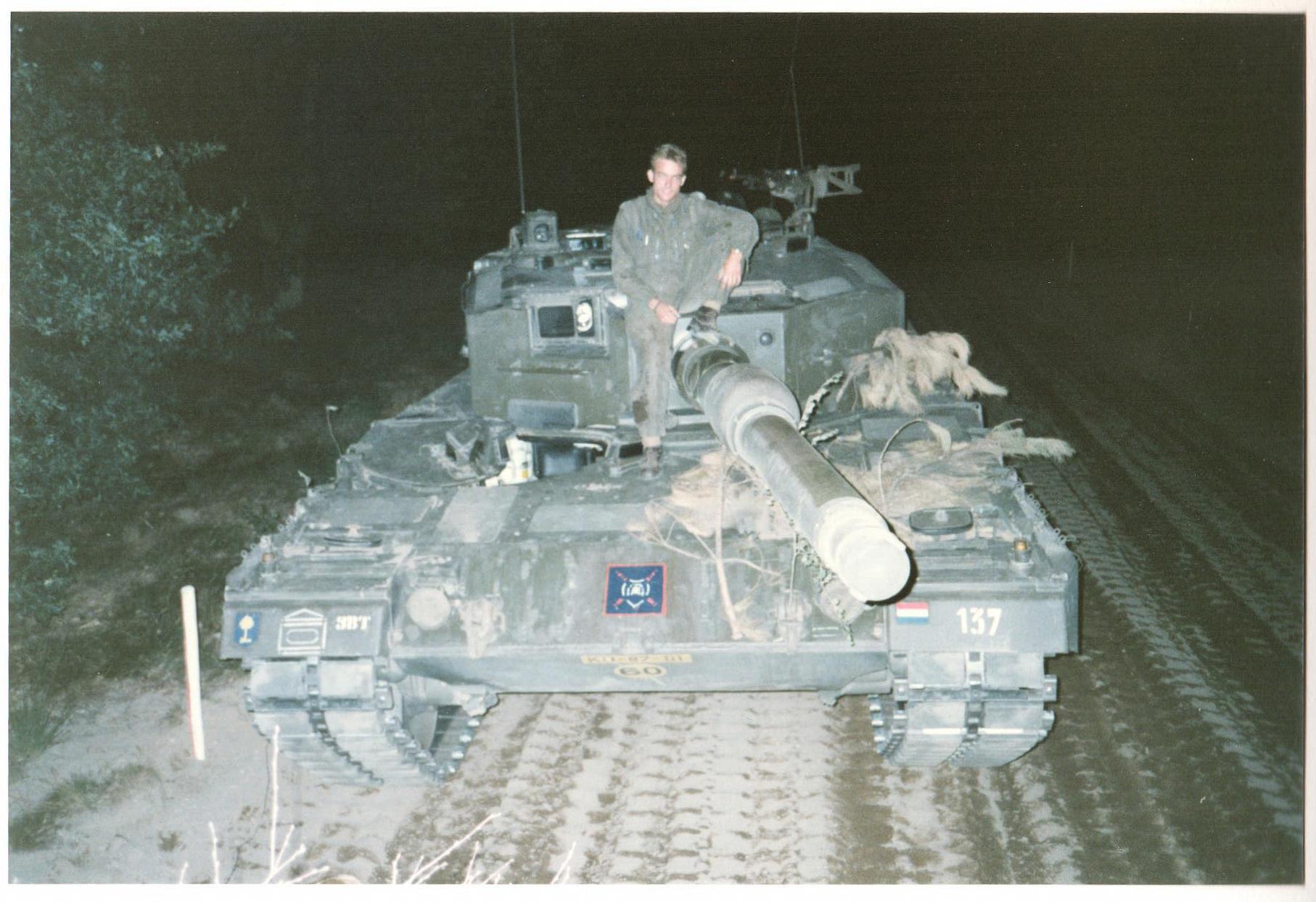

This was out first night exercise with the tank.Me on top of the leopard 2.
This was during our first exercise as a platoon with the platoon leader putting on his cap.

Paraat

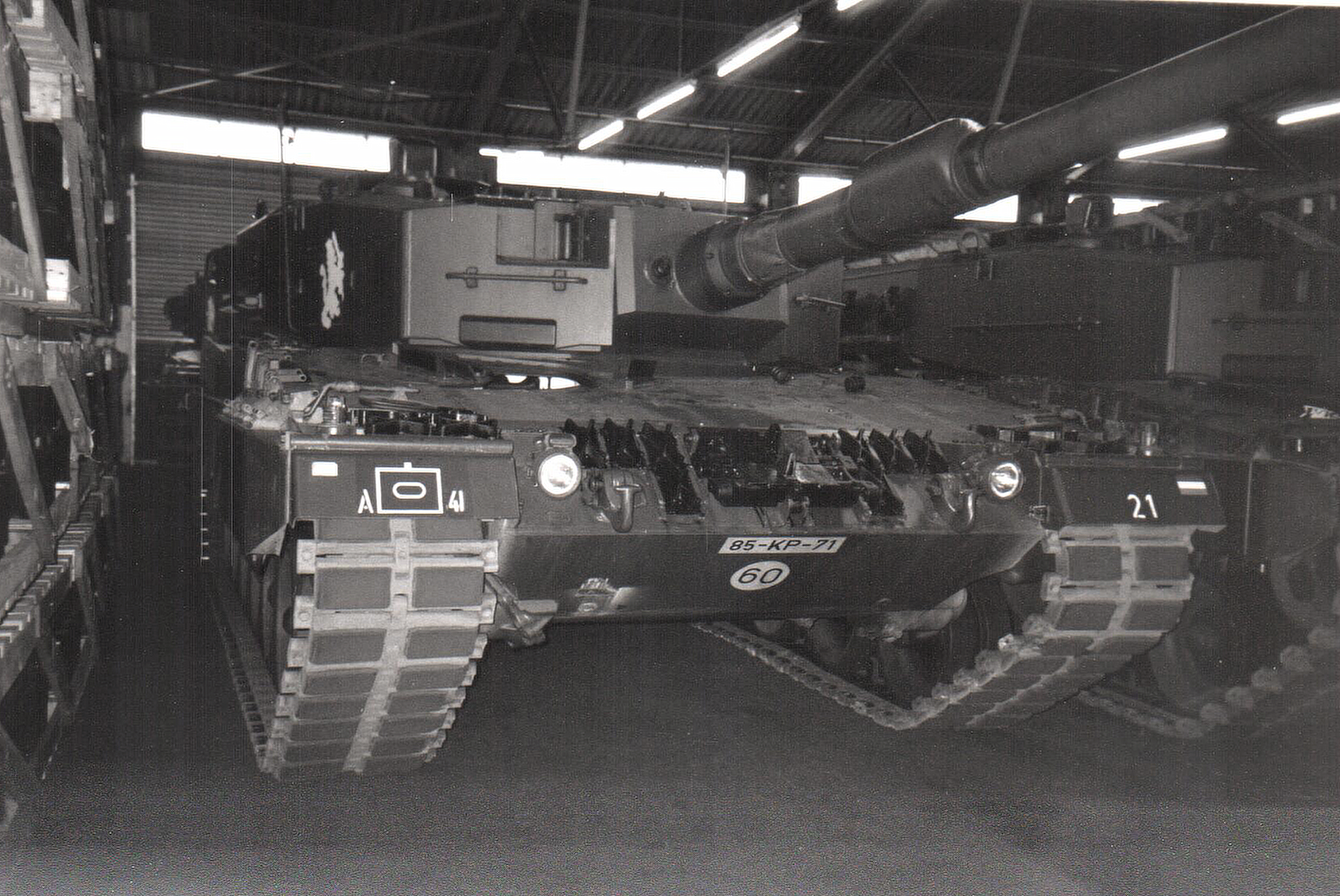

After that period in the Netherlands, which lasted 6 months, I was stationed in Germany in Bergen-Hohne. Here are some pictures from there:

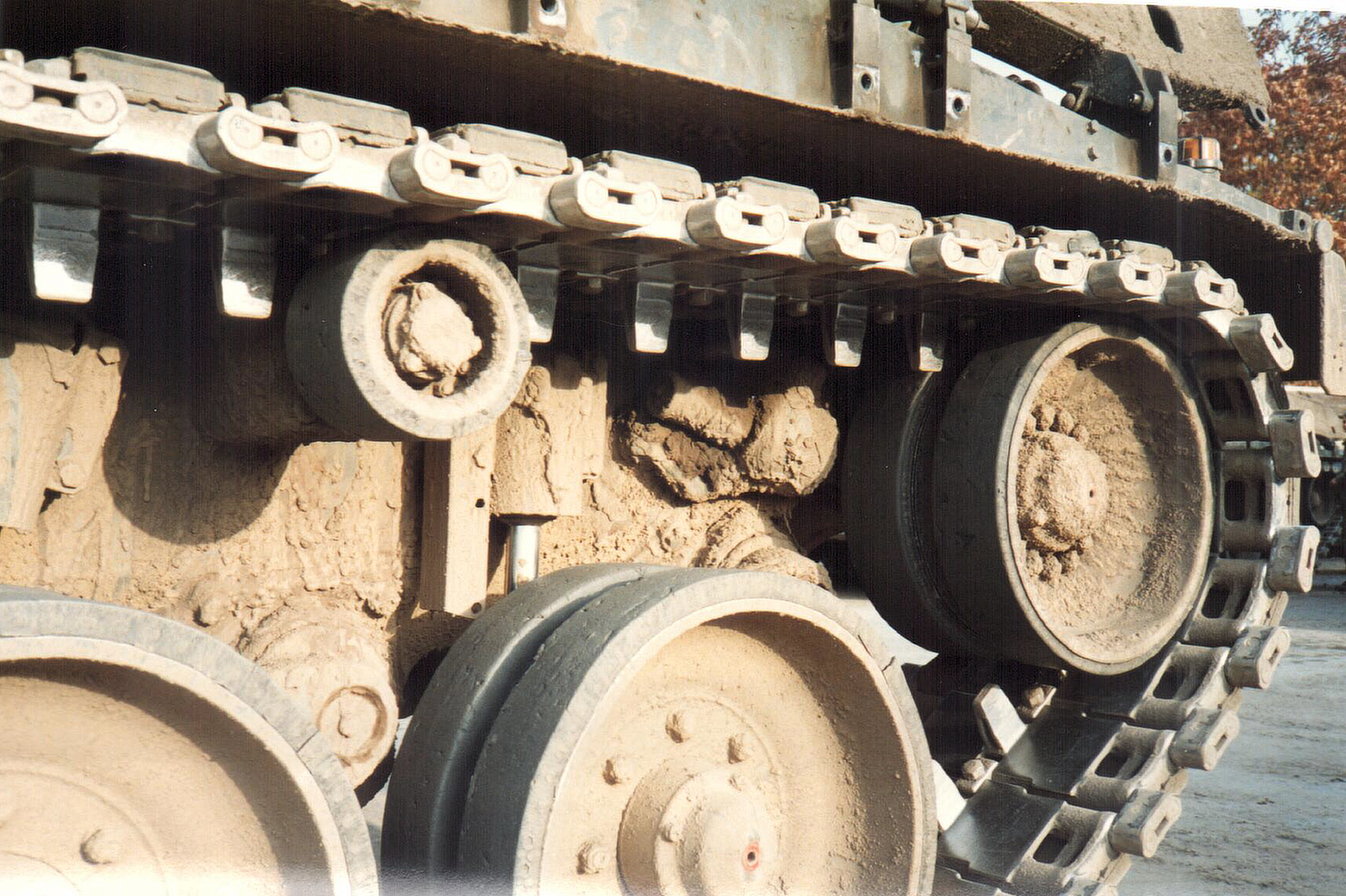

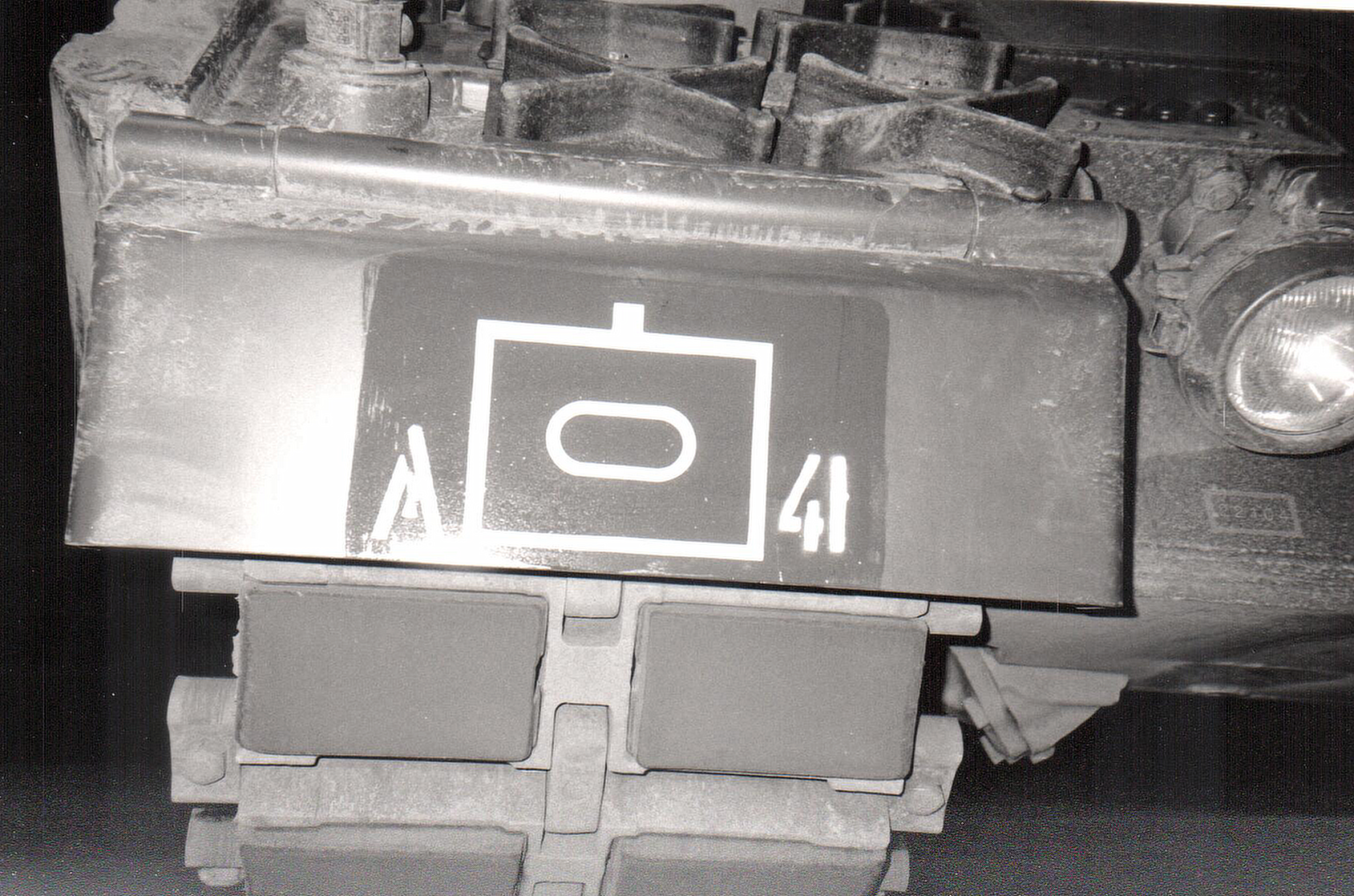

detail of the front of the wheel mechanism

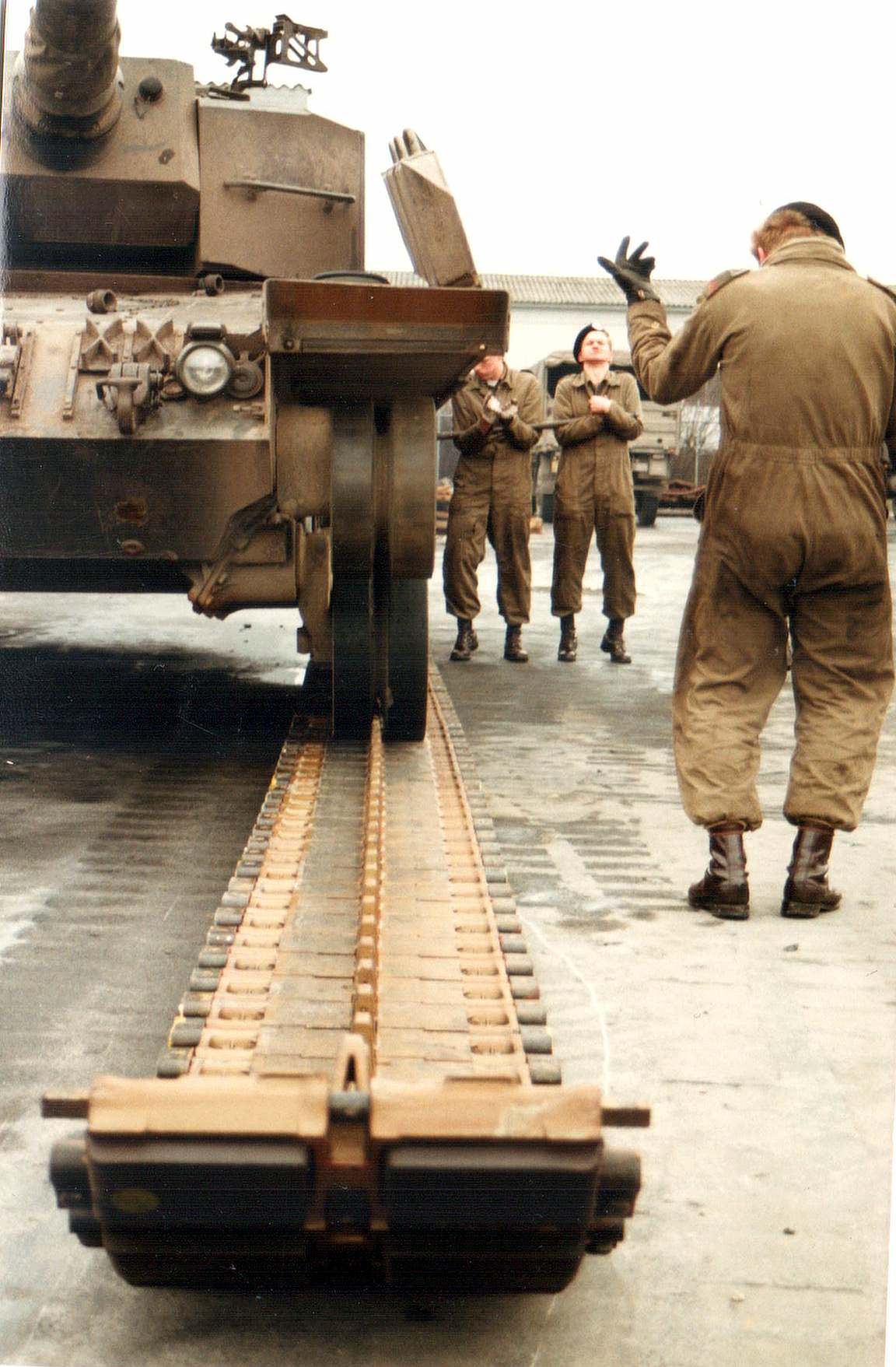

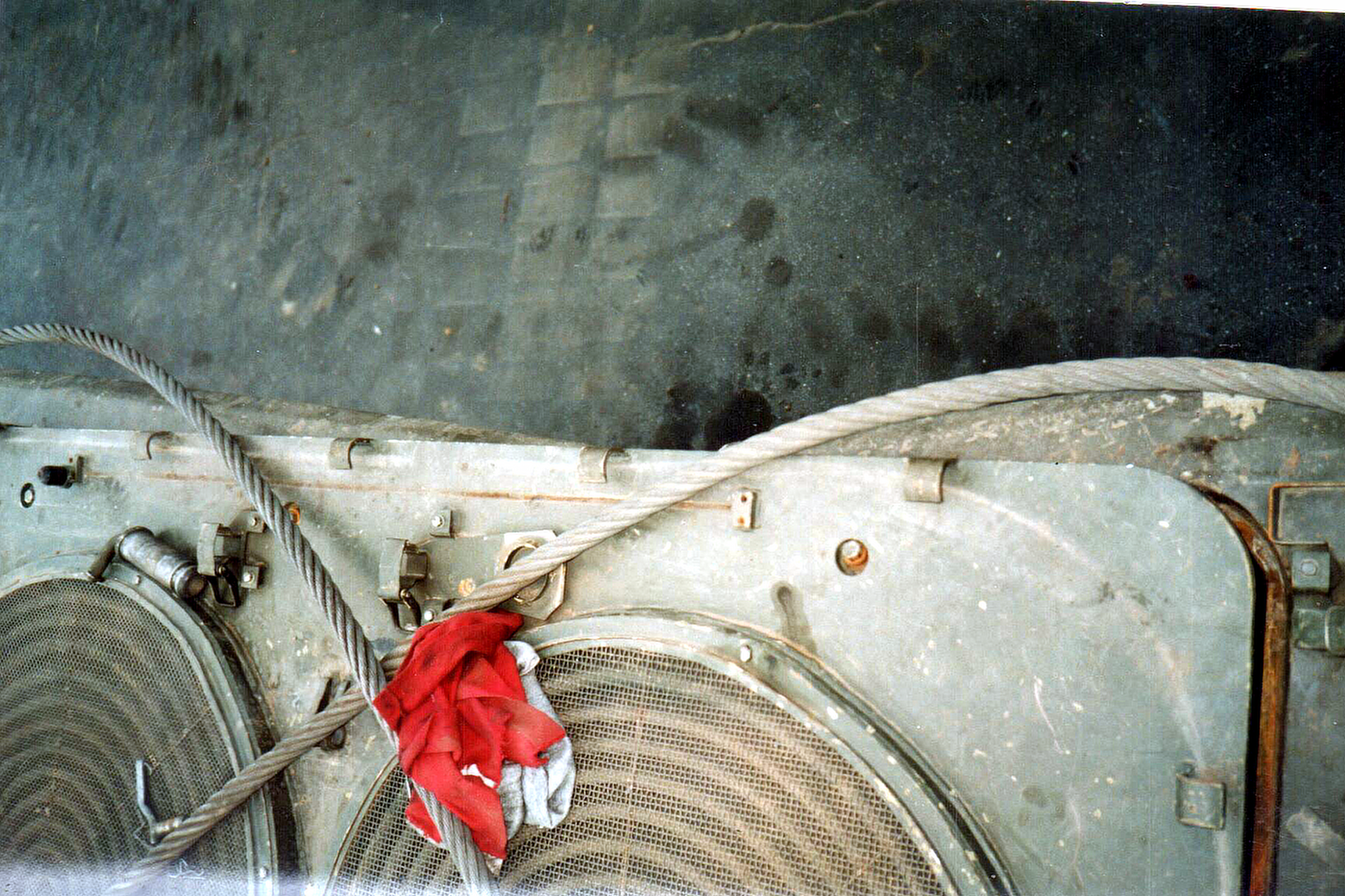

This picture was taken from a tank of which the back had had a collision with a turrent.Here we are busy putting a new track on the leopard 2. Needless to say the track is very very heavy.A Eskadron 41 Tankbataljon

Field exercises

We also went into the field. A lot. Sometimes for a few days. Here are some pictures:

Waking up after a night in the field.

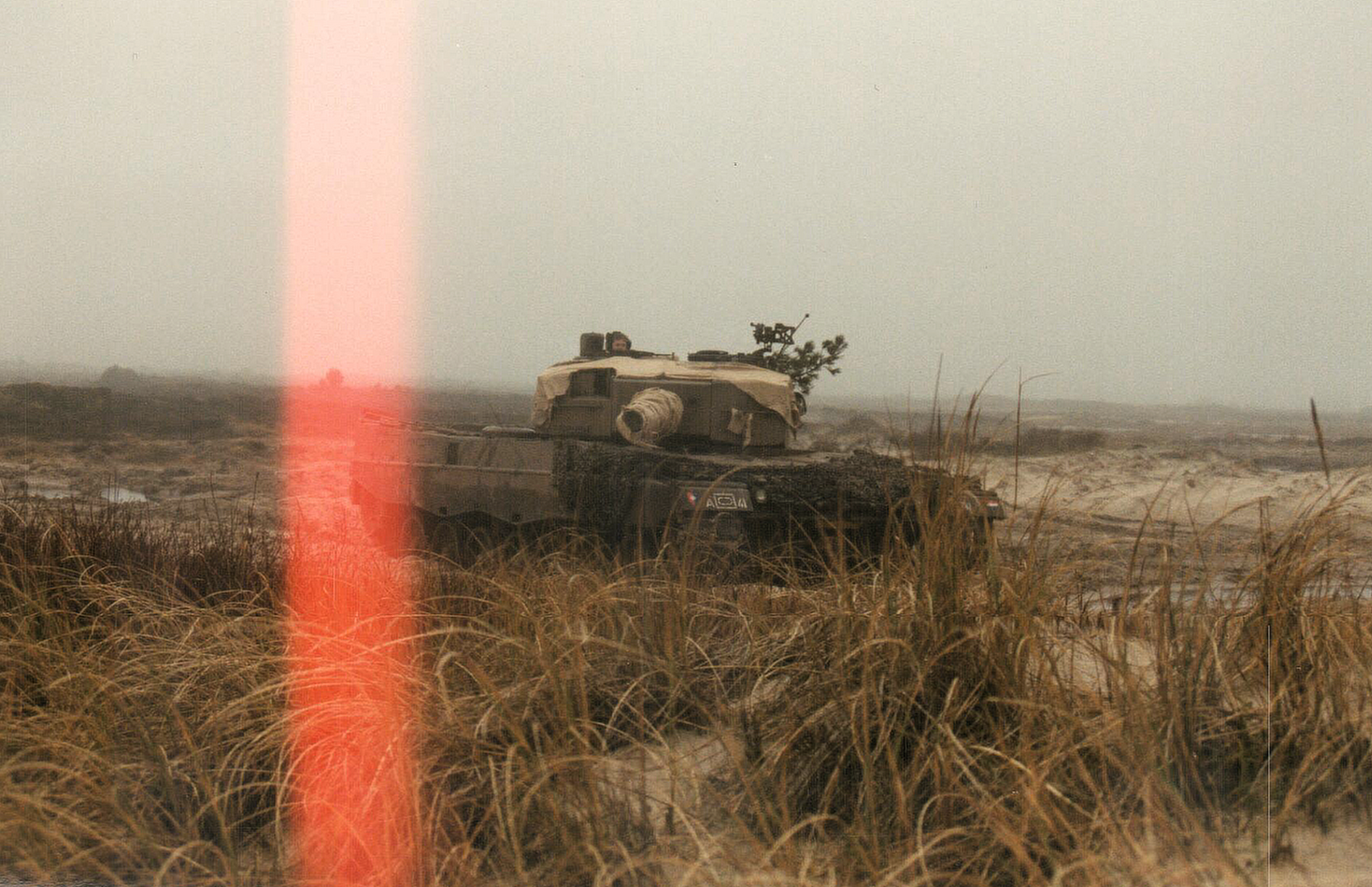

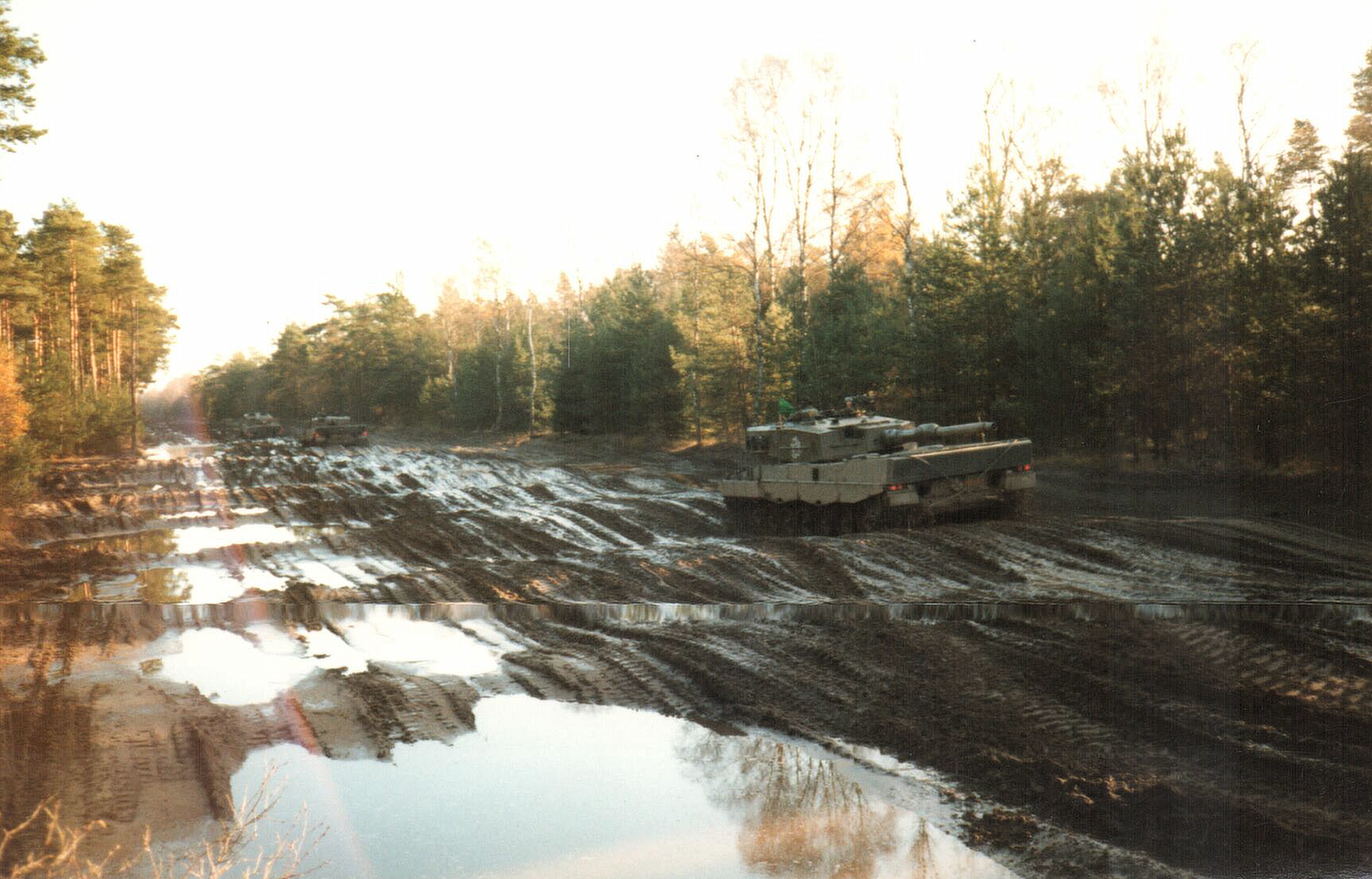

‘wasbord’. This terrain is formed this way with the bumps due to the tanks driving there. It gets worse over time. It is very uncomfortable to drive.Leopard 2 hidden behind a bump in the terrain.

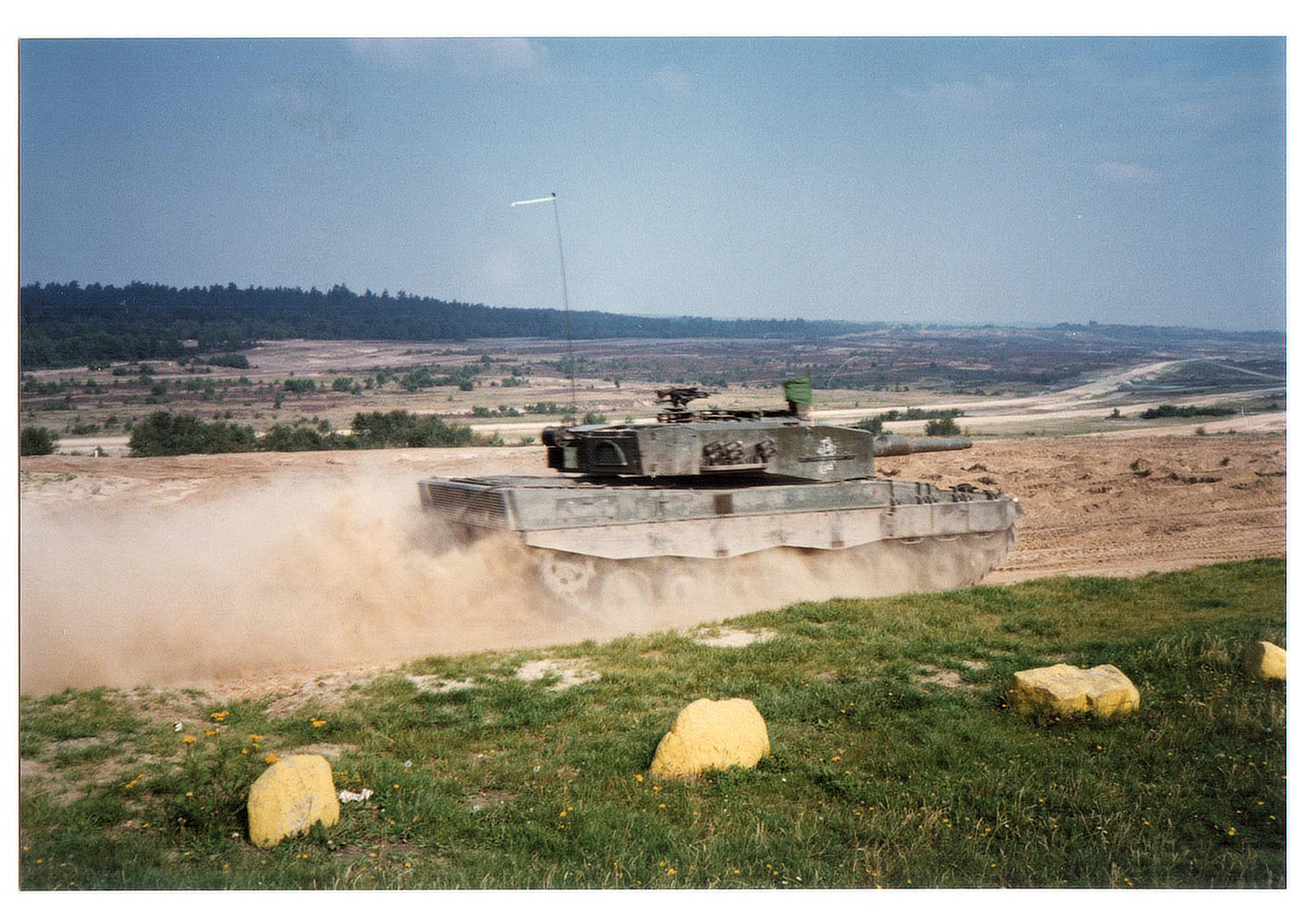

All Terrain Vehicle. The leopard 2 has no problem with any terrain.

Full speed ahead, eeeh reverse I mean. This is a manoeuvre to withdraw, driving backwards full speed.

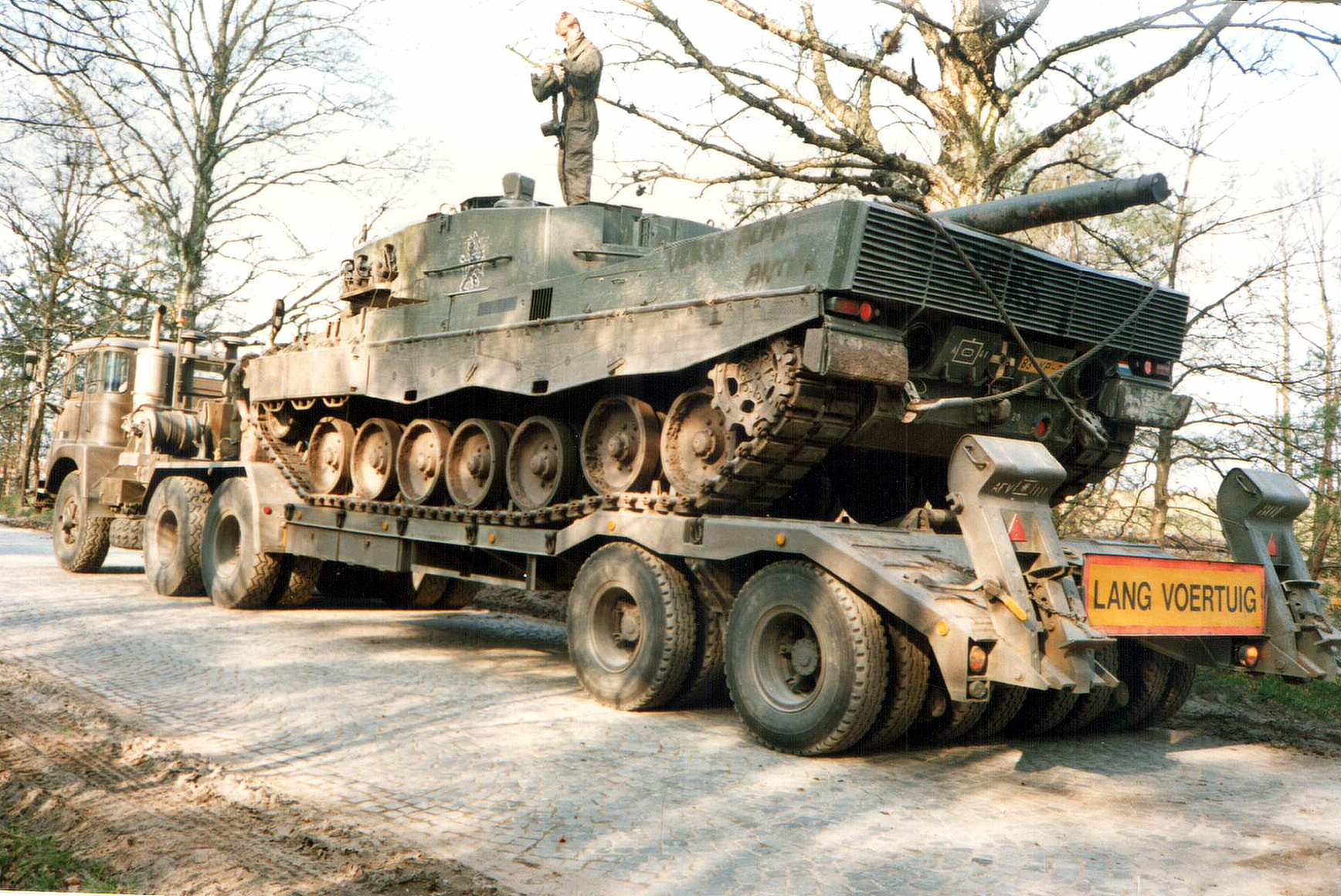

lolo. The leopard on a low-loader.

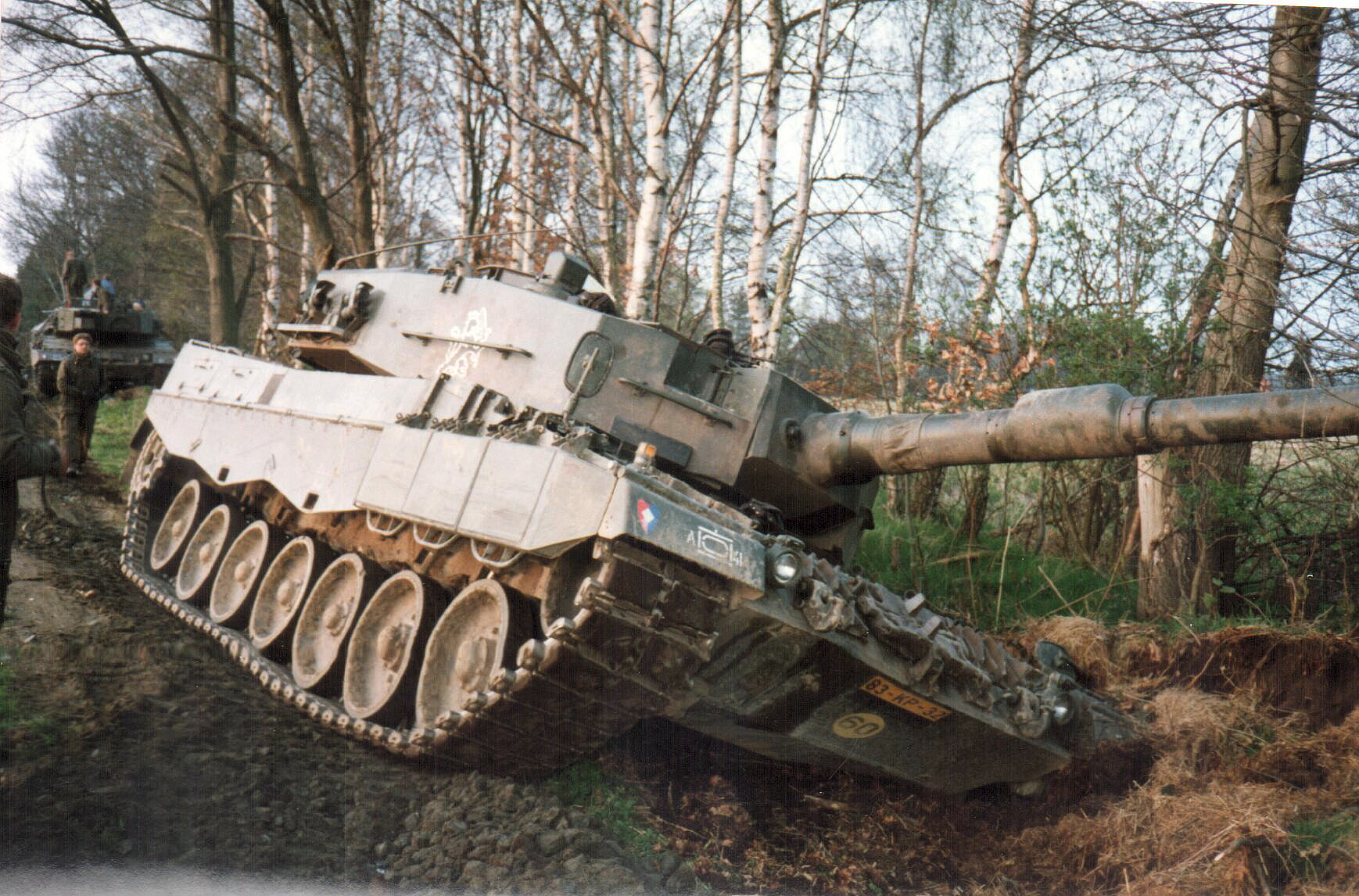

Parked in a ditch, this tank wasn’t coming out by itself. It had to be towed out.

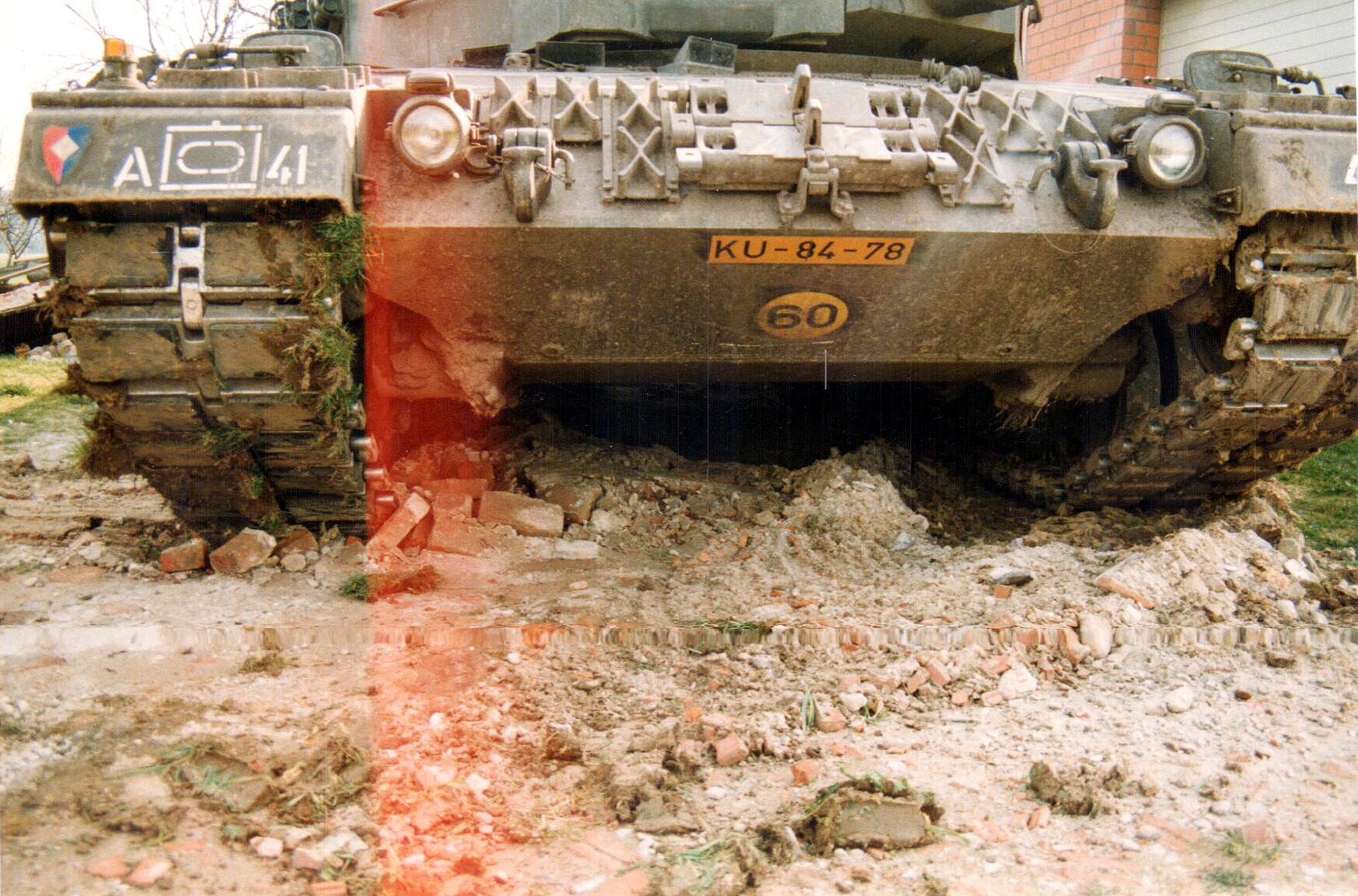

What leo 2?

My driver managed to drive the tracks off of our tank, making a turn in very loose sand. It took us a while to get the track back on the cog.

Me in action. Reading the map doing a relocation during the excise. Unfortunately the picture is not very good, but the tank was moving around a lot.

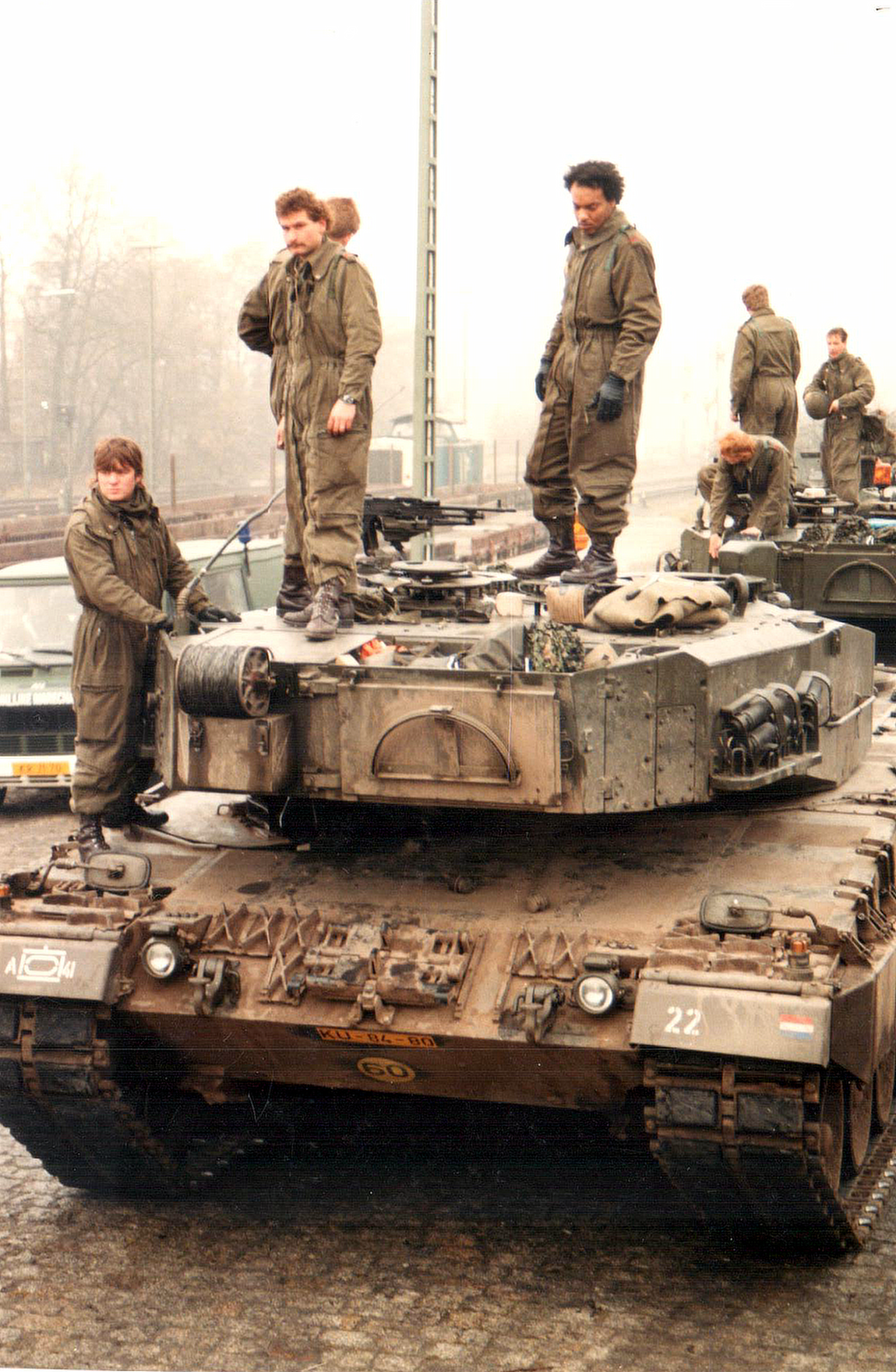

My crew and my tank just after we rolled the tank from the train that had brought us to the exercise field on the other side Germany. This picture was taken in the morning, as the trainride was a night train. I am standing just behind my driver. I am the one with my back to the photographer.

Fill ‘er up! This takes long. Very long. 1100 liter.

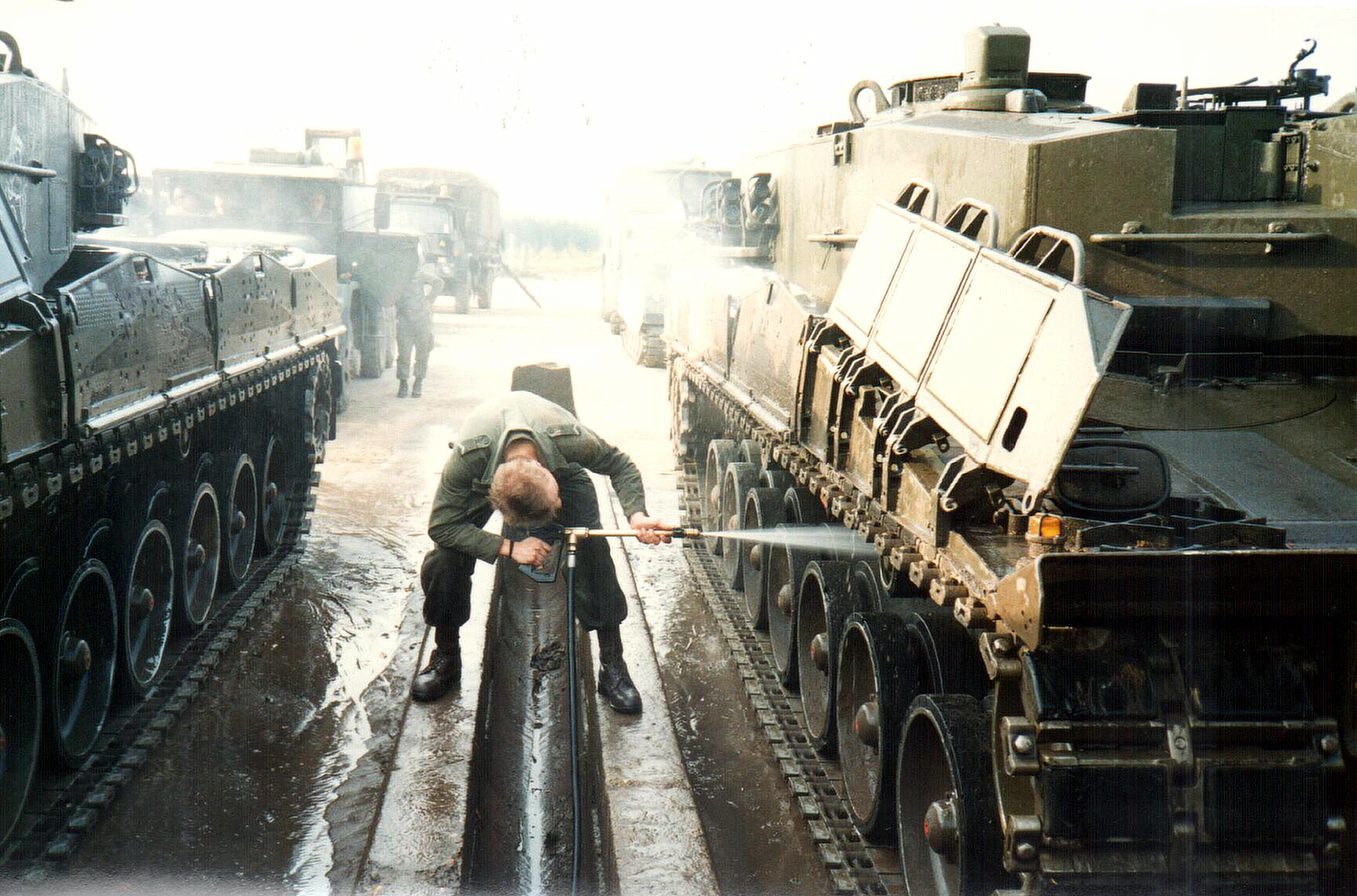

Me giving the tank a thorough cleaning afterwards.

Shooting practice

In Bergen-Hohne is Europe’s largest and best shooting range for tanks. Of course we went there. Here are some action pics:

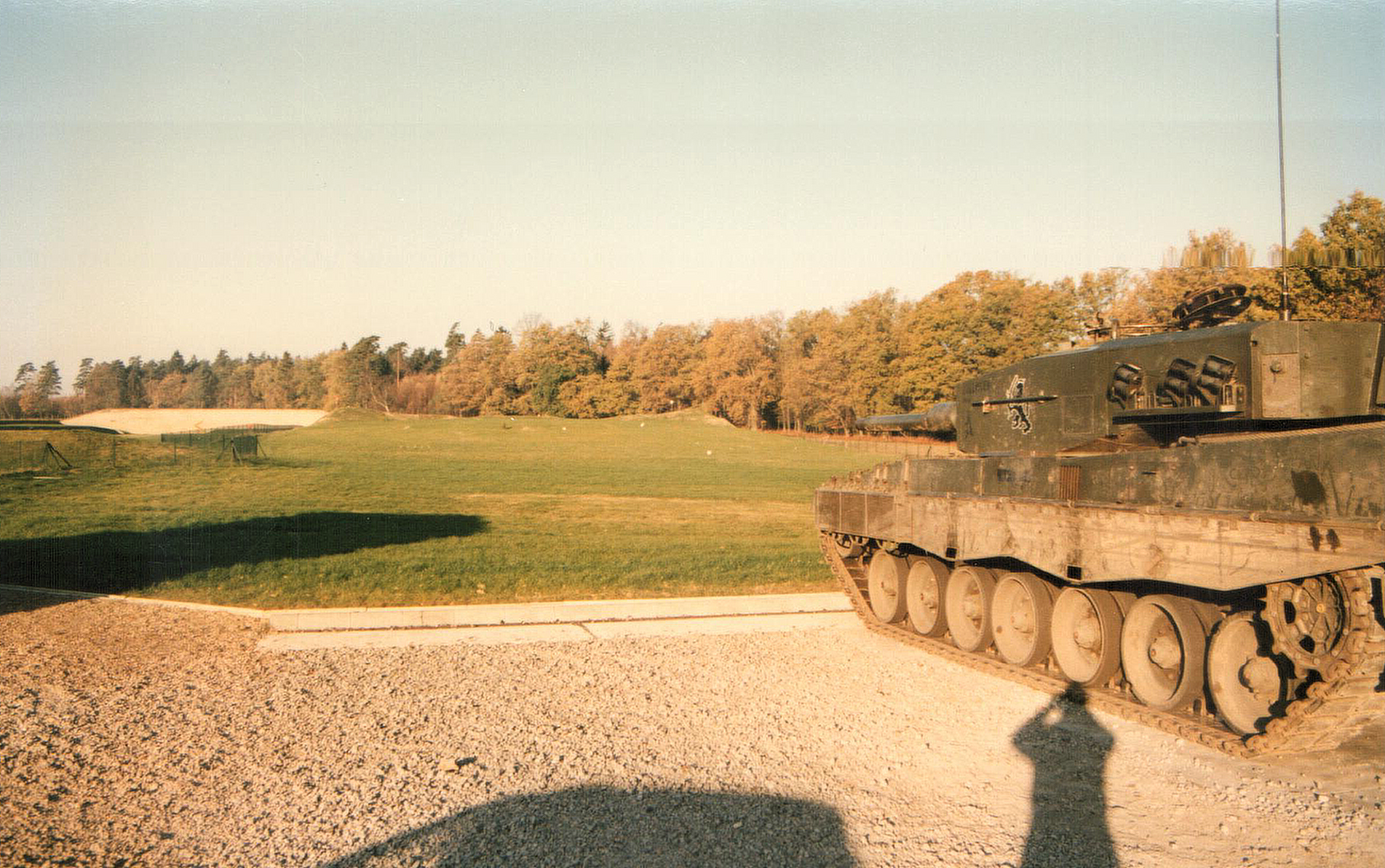

This actually is a small version of a Dutch shooting range where you can practice tactics, like target distribution between tanks etc.

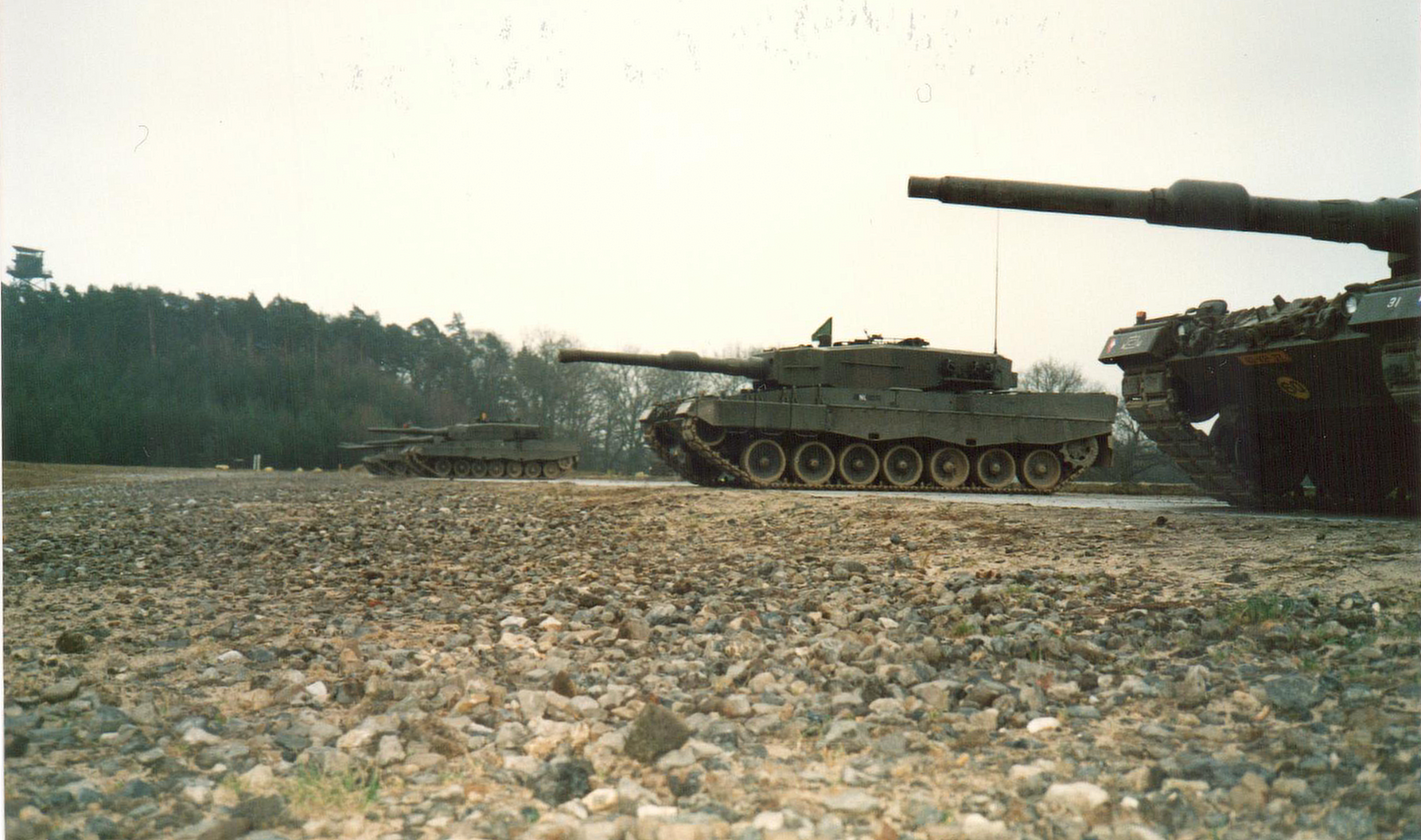

Same small shooting range but then the view as seen from the tanks.On the big firing range. Drivers resting between sessions.

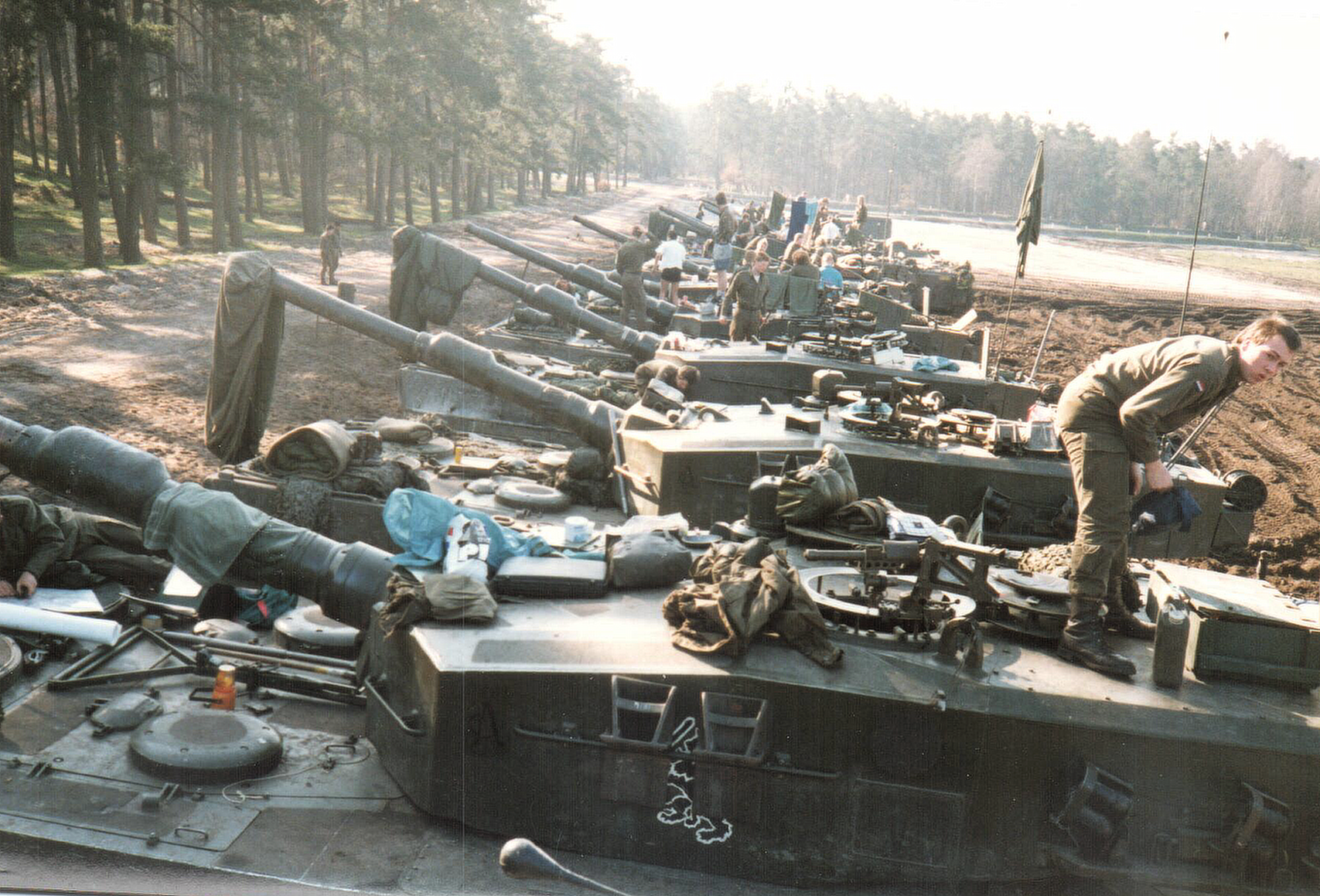

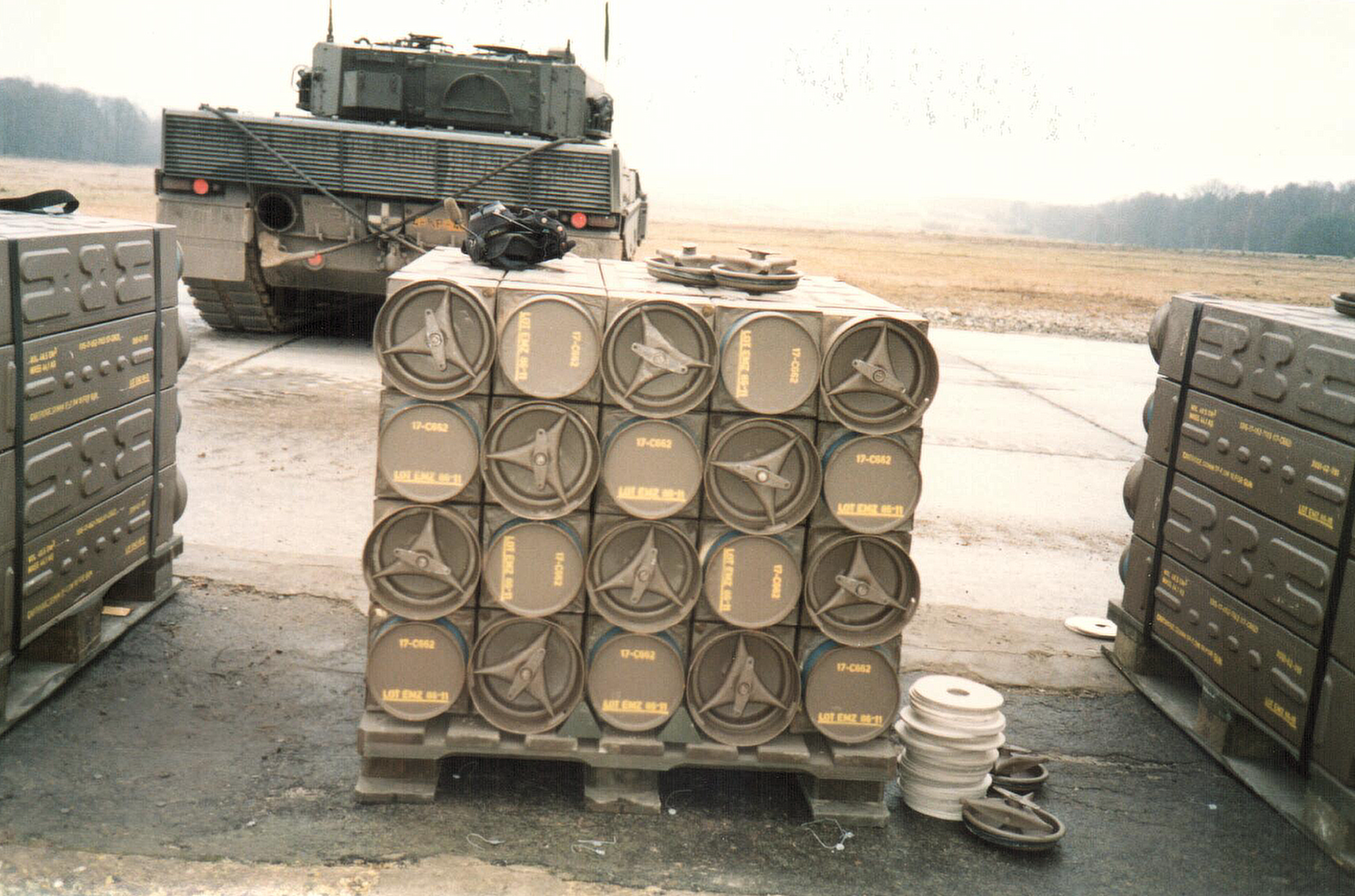

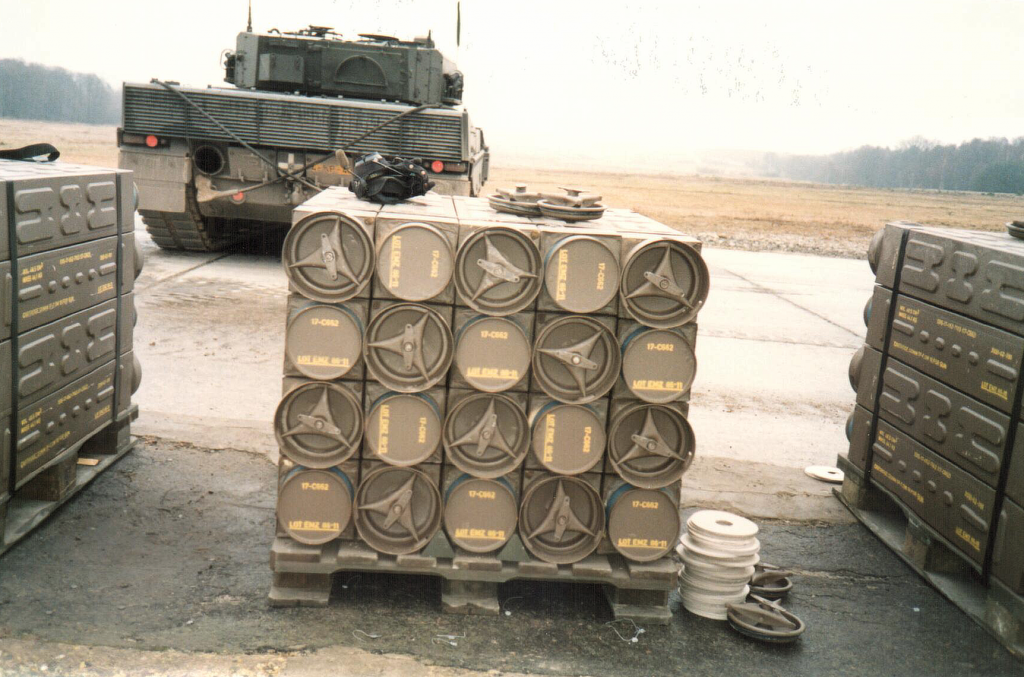

Grenades are stored right behind the shooting tanks.Me (right) and another tank commander talking to the platoon commander (middle).Alpha tank in action, ready for firing.

real world field exercise

At the very end of the tour, we did a NATO real world exercise, where you drive through the real world and drive the public road through villages and take shelter at some farmer’s place etc.

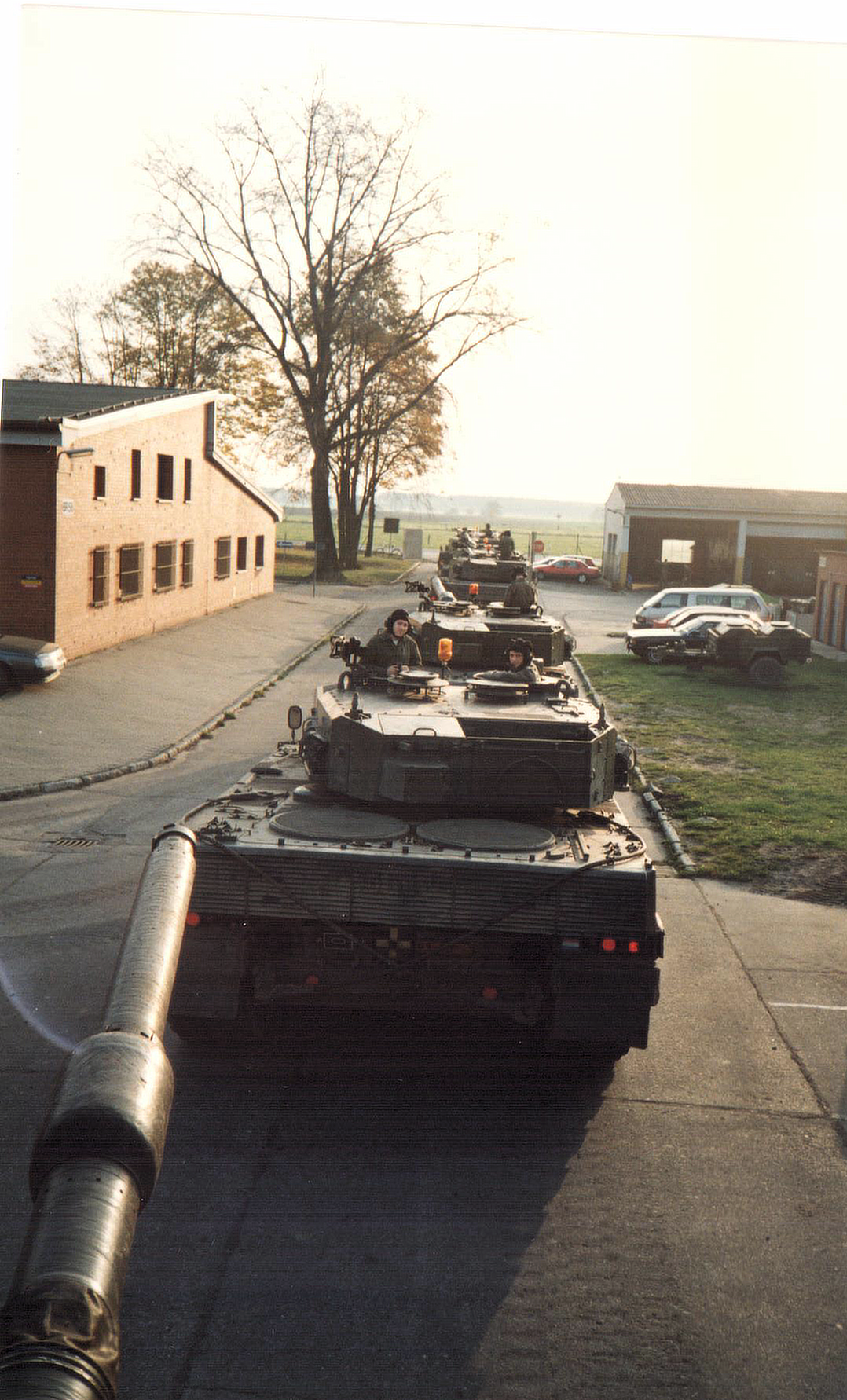

Here we’re waiting to get out of the gate at the barracks.

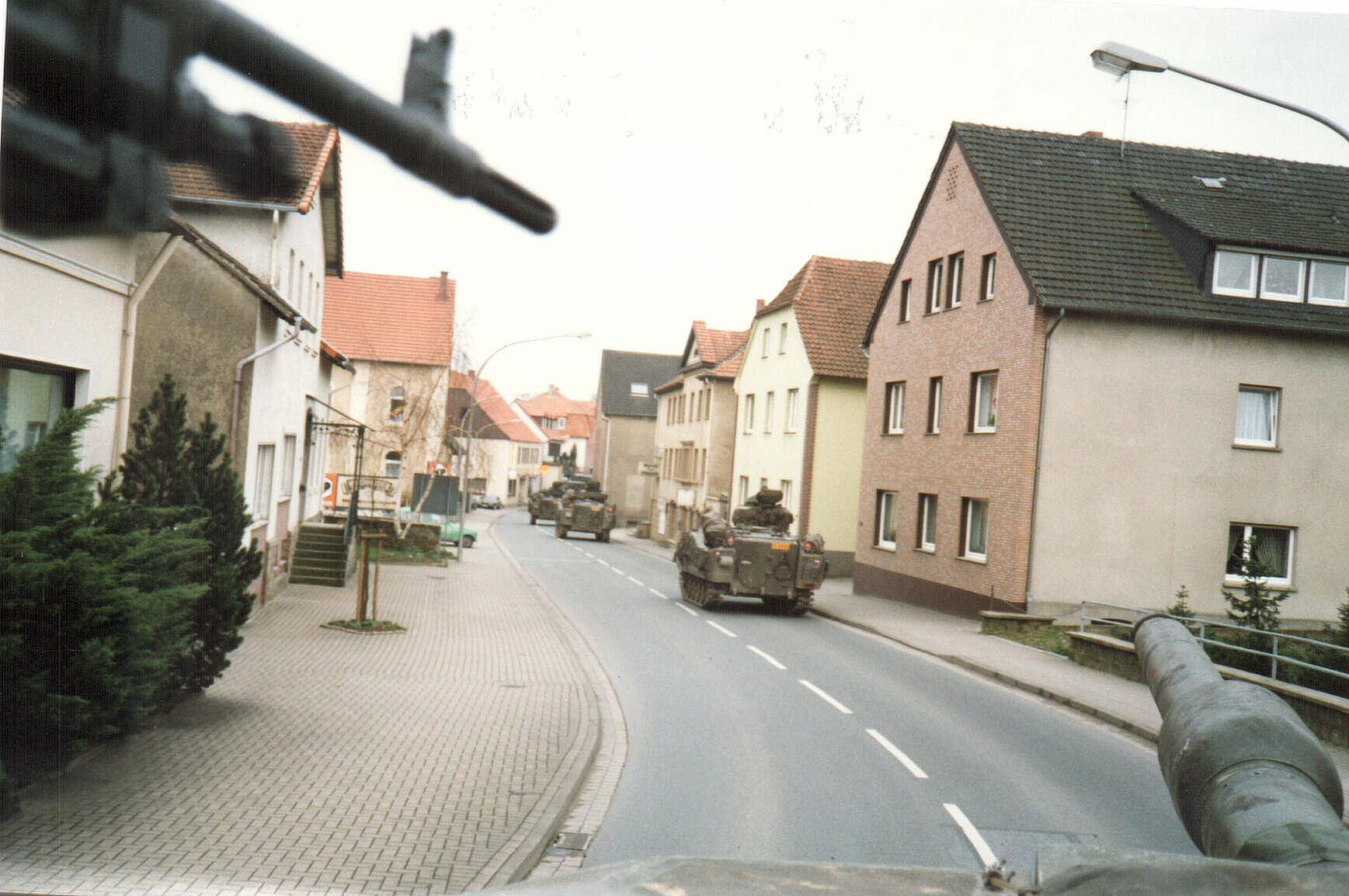

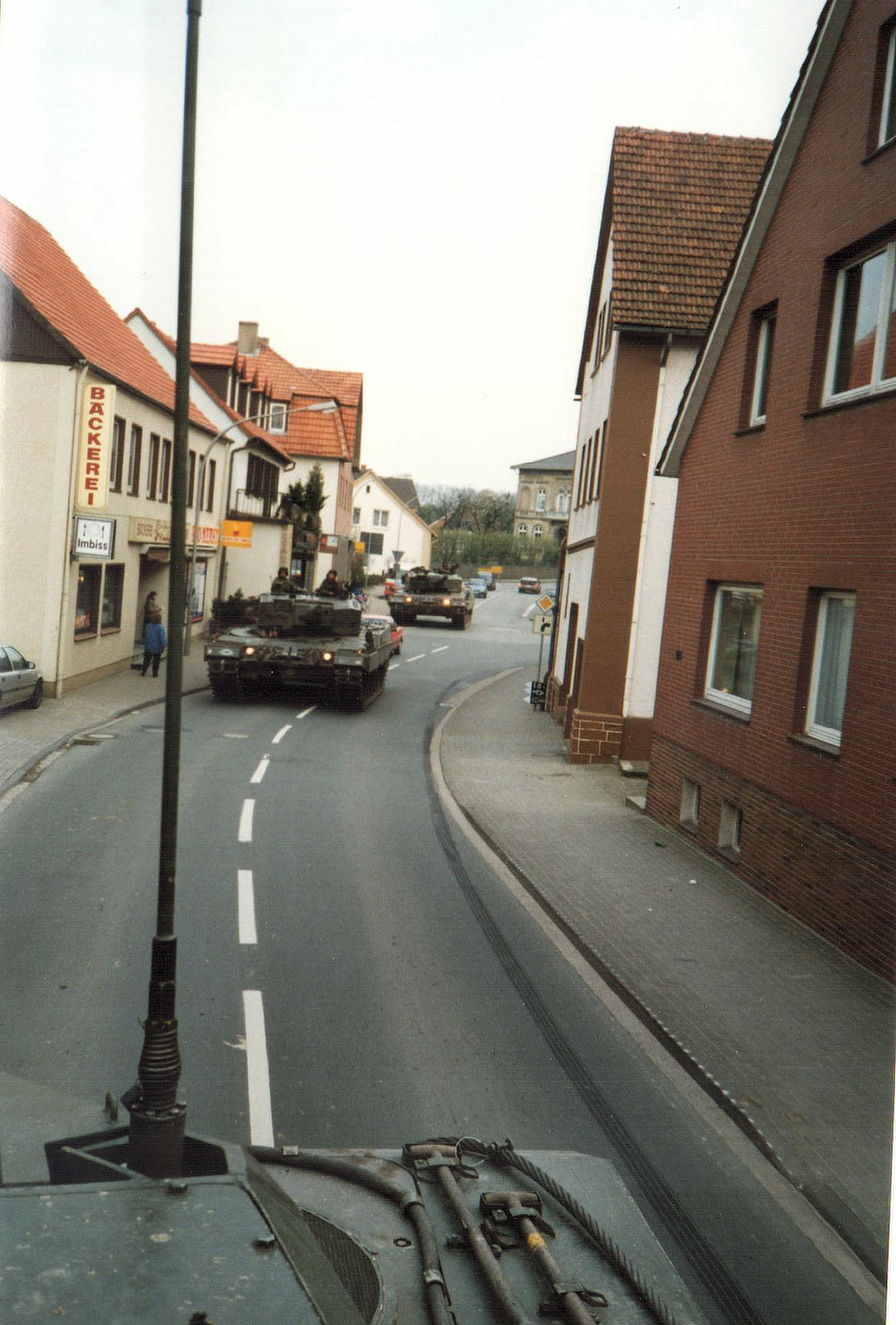

Through the village.

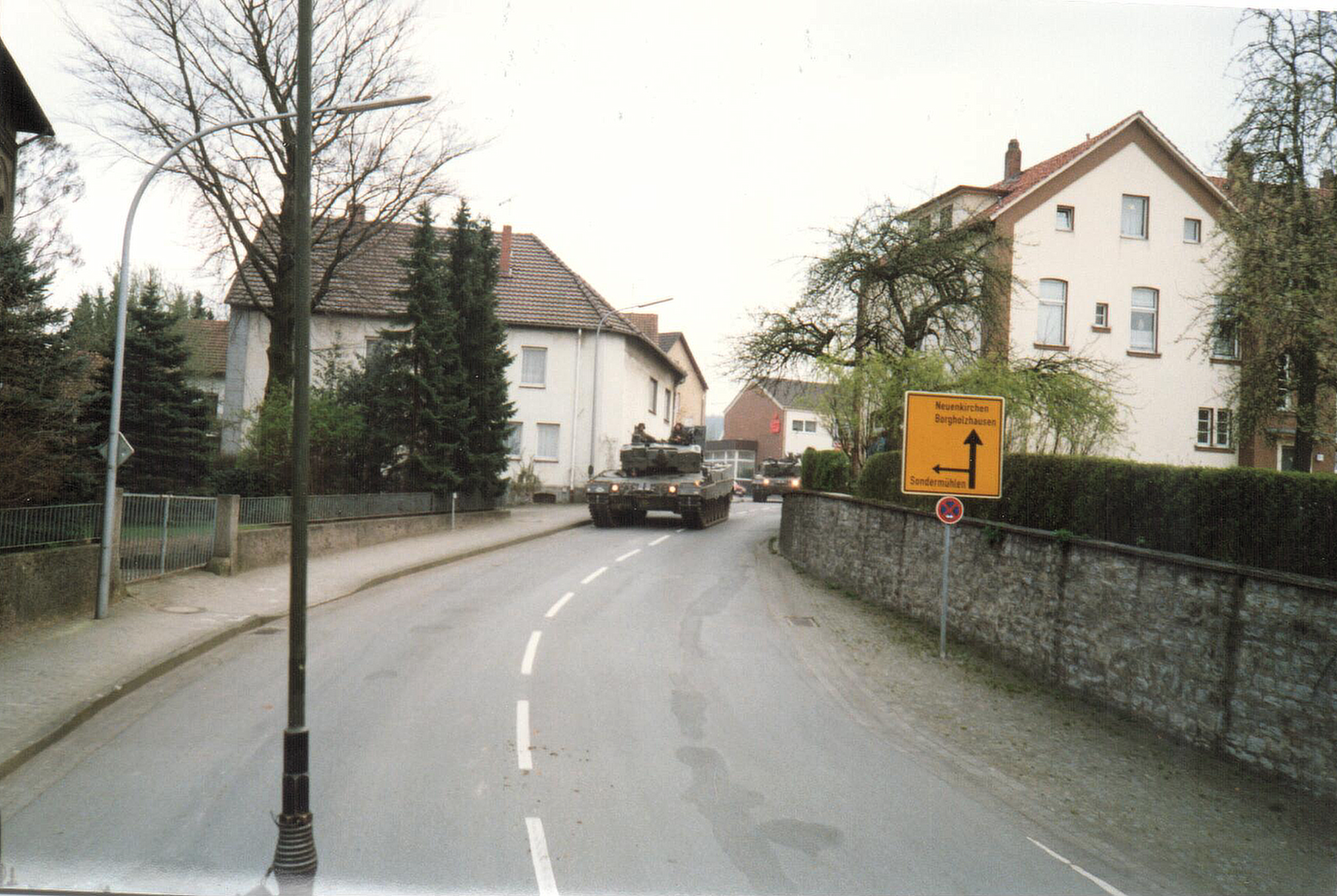

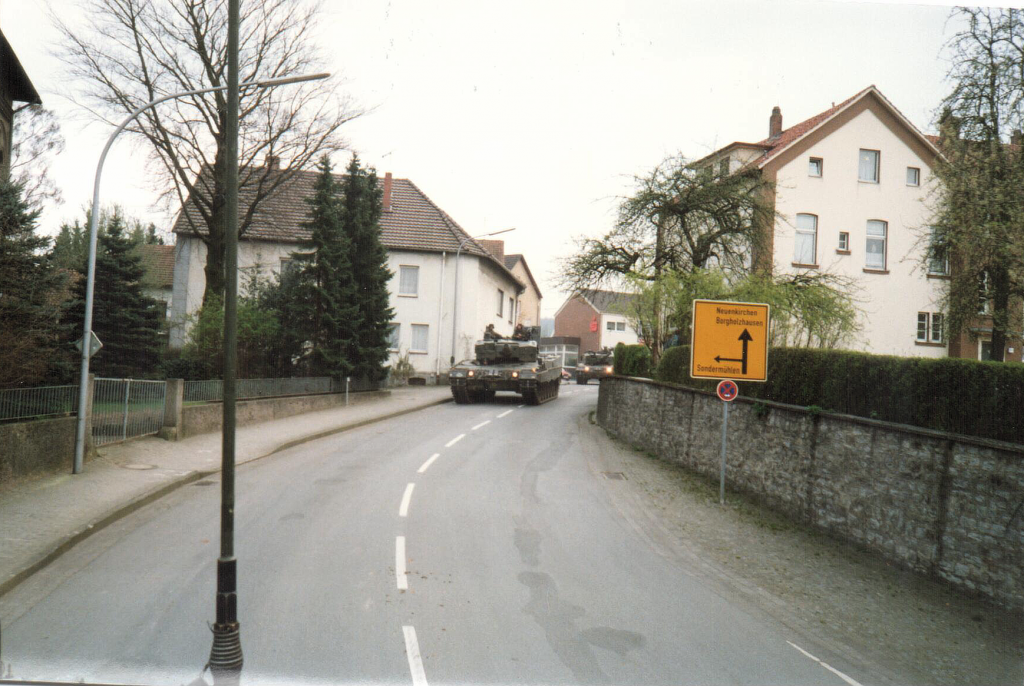

Some of these roads are very narrow.

There were also other military vehicles involved. In fact it was a complete exercise, where multiple countries collaborated.

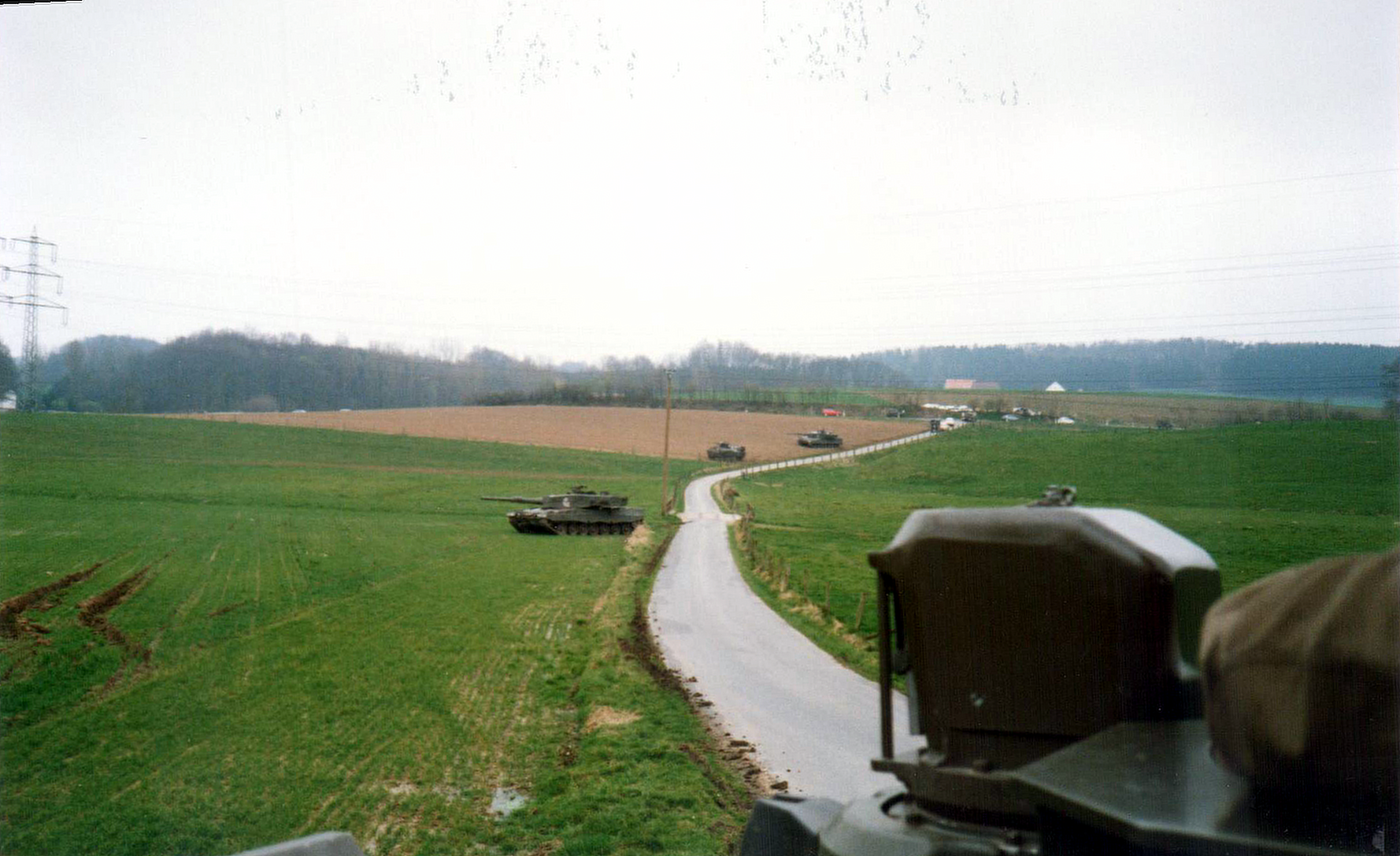

Taking a stand in a field.

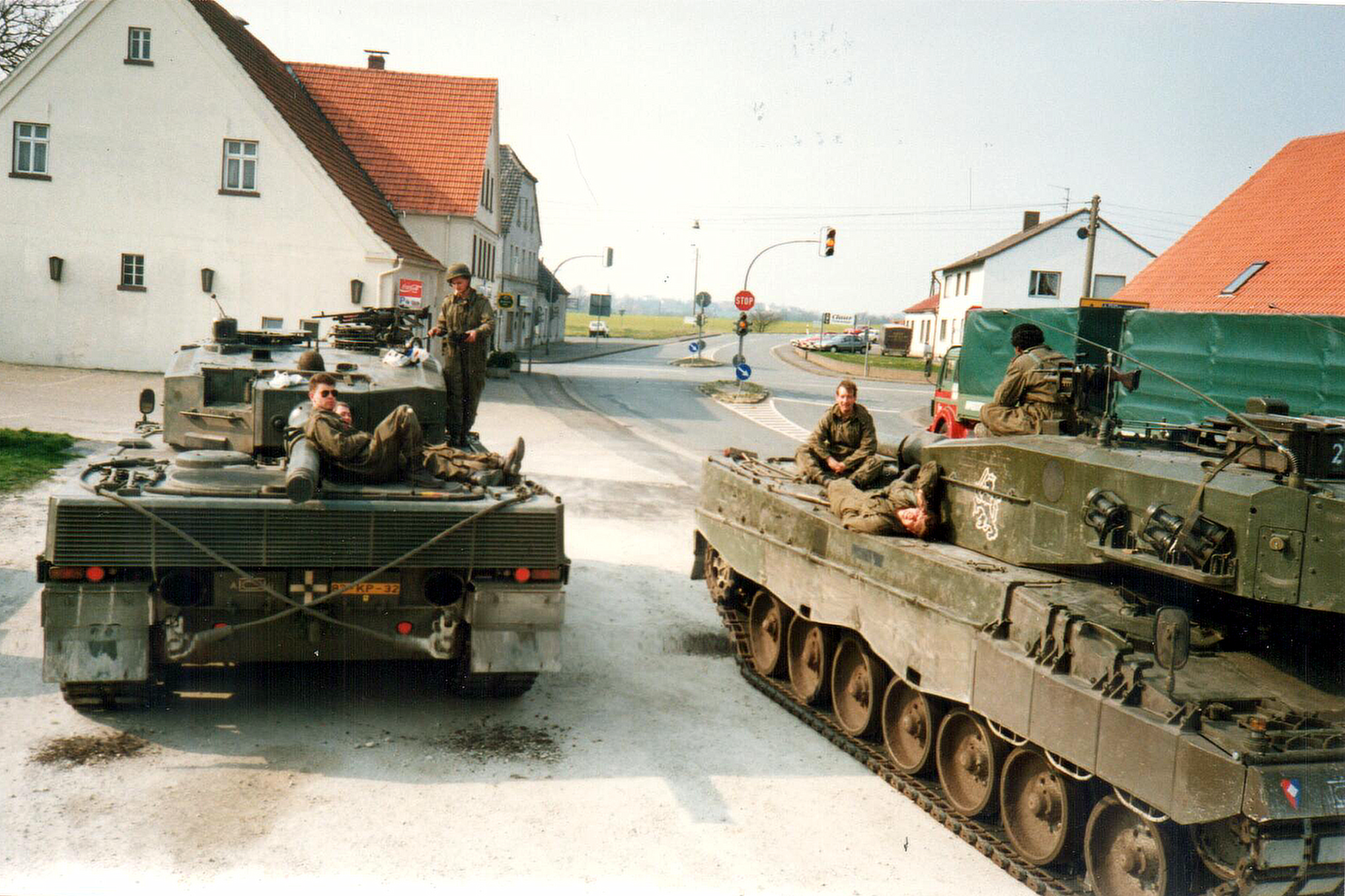

A moment of rest, parking in a small town by the side of the road.

Getting supplies like fuel (jerrycans) in the late evening.

Loader in action. He is in charge of the flashlight.

Queuing to return to the base. The exercise lasted about 3 days.

Tandberg TD 20 A

I have recently acquired a Tandberg TD 20 A. This model was on my list of decks that I always wanted to own. It is a very good sounding deck, and received wonderful reviews in it’s days. It was compared once to a Philips N4520 and a Teac X-2000R in a magazine article and it came out 1st in some of the sections. I can not find the article at the moment, if I find it I will post the link here.

It is a deck from Tandberg, a Norwegian company. Not many decks came from Scandinavia, apart from B&O and some others. This deck is also available in 2 tracks, maybe I will come across one someday, I hope.

This deck came as ‘mechanical defect, does not run but signal in/output is good.’ So it will be a challenge to get it working. It also came with 2 very special Tandberg NAB adapters.
First it will need a good cleaning. Especially the front aluminum is yellow-ish.

Cleaning

First I took the deck out of its casing. Then I took of the knobs and the front plates. The knobs were cleaned, and fortunately on the front plate the lettering does not come off! The black upper plate looks nicer now too.

1st checks

It powers on: good. It winds: good.
But it does not play. It appears the pinch roller, or better the arm on which the pinch roller is located, is stuck. This looks like a bad case of stuck grease.

After disassembling some parts, including removing a split-pen, I was able to remove the arm. I removed the rubber roller and put it into a detergent solution for a night to revive it. I cleaned the axle from old grease and lubricated it. Now it moves again effortlessly. I checked, cleaned and regreased all moving parts. Also the gears on the 4th motor, that manages the tape handling, were stuck. Cleaned and lubricated that as well.

Then another issue presented itself: the left reel dish was scraping against the brake. I readjusted that table so that it is in the correct position again.

Cleaned the tape path and the heads, made sure the tape guides were smooth in their movement.

provisional play test

Then I put a tape on: it was working! This deck has a very smooth tape handling when starting and stopping. It is a delight to see this in action. Also the music on the tape was playing, so playback circuit was working too. This keeps getting better and better.

provisional record test

I noticed something odd: the erase head is not in the position that it should be: it is slanted and it’s position is too low on the tape path. Apparently the construction on which it is mounted was dented once. This is an issue for later. Now I will just use my bulk eraser to erase a tape and record on that.

I put on some Agfa pe36 (which is not a very high end tape, but als not budget – a kind of ‘well, ok’ -tape) and the difference between source and tape was almost non-existent!. This is a very good deck as-is even without the maintenance, adjustment and calibration that I will perform on it.

NAB adapters

The matching NAB adapters have 2 peculiarities:

  • they haven’t got a clamp en turn mechanism like the ones from Teac and Philips etc. Nevertheless it works well: the outer ring covers the NAB hole in the reel, and the trident from the deck grabs the whole tight to the reeltable. Looking at it this way you could say that the other manufacturers have come up with a far too complicated construction 😀
  • using the large 26cm reels with these adapters, the reels are too deep relative to the tape path and the tape scratches the rim of the reels. This is mentioned in the manual: a disc is to be used to lift the reels a few mm. When I use the other brand’s adapters, there is no problem.

The tape guide arms can be adjusted to bring the tape lower to the reels, but I will not do that as I suspect trouble with 7 inch reels.

erase head problems

There is a strange thing going on with the erase head. This is the very first time that I experience a skewed erase head. And it is not only skweded but it is also too low.It looks like it has been pushed down. The construction is weird: the head is mounted on top of a kind of tincan strip which is Ω omega shaped. And that is dented. And while pushing it up again, one side broke.

What I did was load some blank tape, and by that I mean see-through tape, and line up the erase head. I put some nuts and ring under the plate until it was level with the tape. After adjusting the other mounting screws of the head my erase head was level again and at the right height etc. I tested it with erasing and it seems to work just fine. And I could always use the deck for playback only. Or first bulk erase the tape before recording with this deck when it won’t work after all.:)

measuring

After all the mechanical adjustments were made, the unit was cleaned, lubricated, demagged, etc etc I ran some tests to determine how well the deck was performing.

Wow & Flutter, 19 cm/s 9,5 cm/s:
flutter:             0,1         0.15
wow:               0.03       0.08
unweighted:    0.1         0.06
weighted:        0.05       0.15

DIN measured. The values still match the specs quite well!

Distortion: 1kHz 1,2V input:
0.14 % with DUT on ‘source’
0.5 % with DUT on ‘play’ but still on ‘source’
0.75% with DUT on ‘tape’

Tape is Maxell UDXL 19 cm/s. Around 0dB on VU meters.

frequency sweep

Then I proceeded to measure the frequency response. Although the deck sound very good, what I saw on the screen I wasn’t very happy with:

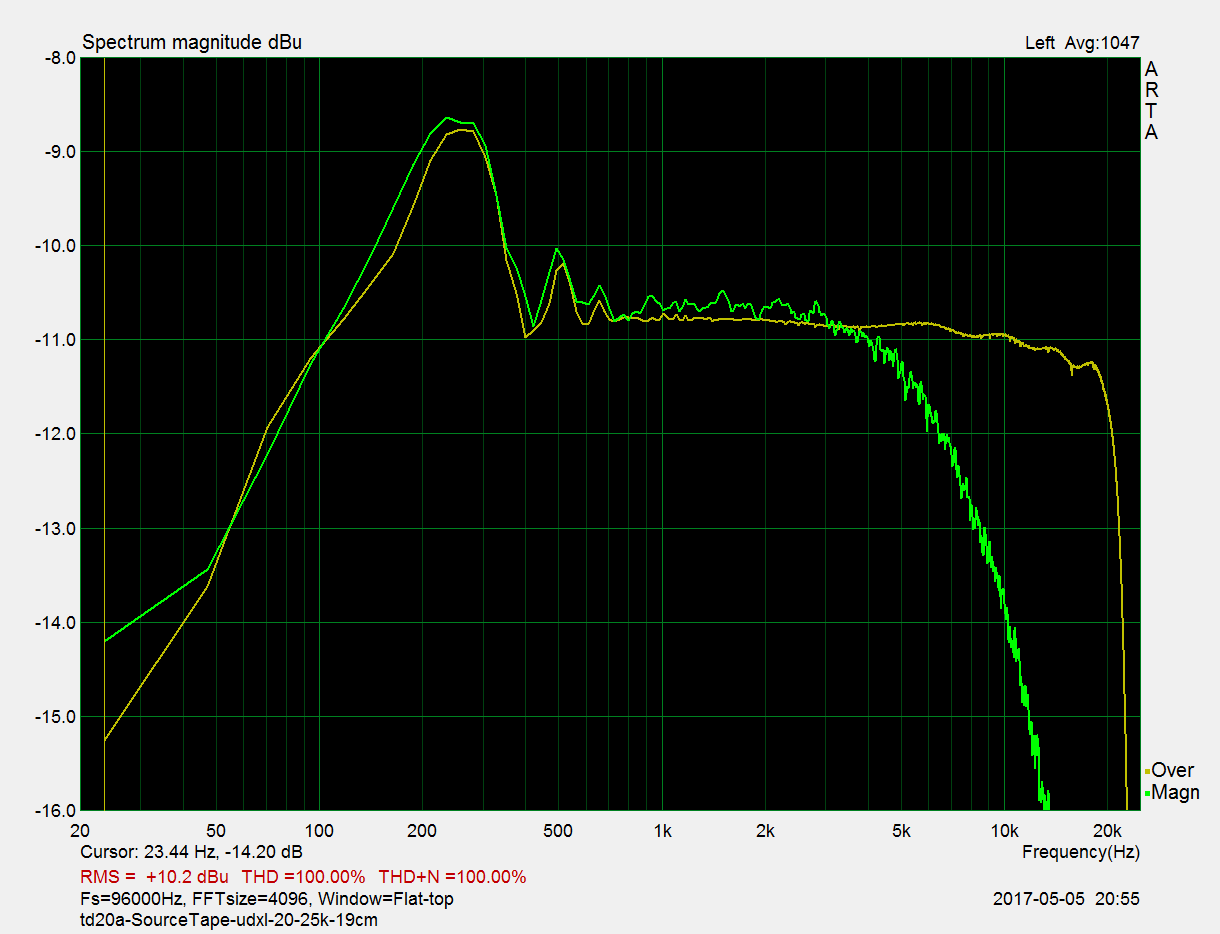

Yellow line is the source sweep, from 20-20kHz and measured through the deck in ‘source’ mode, and the green line is what comes back from that same sweep in ‘tape’ mode.

calibration tapes

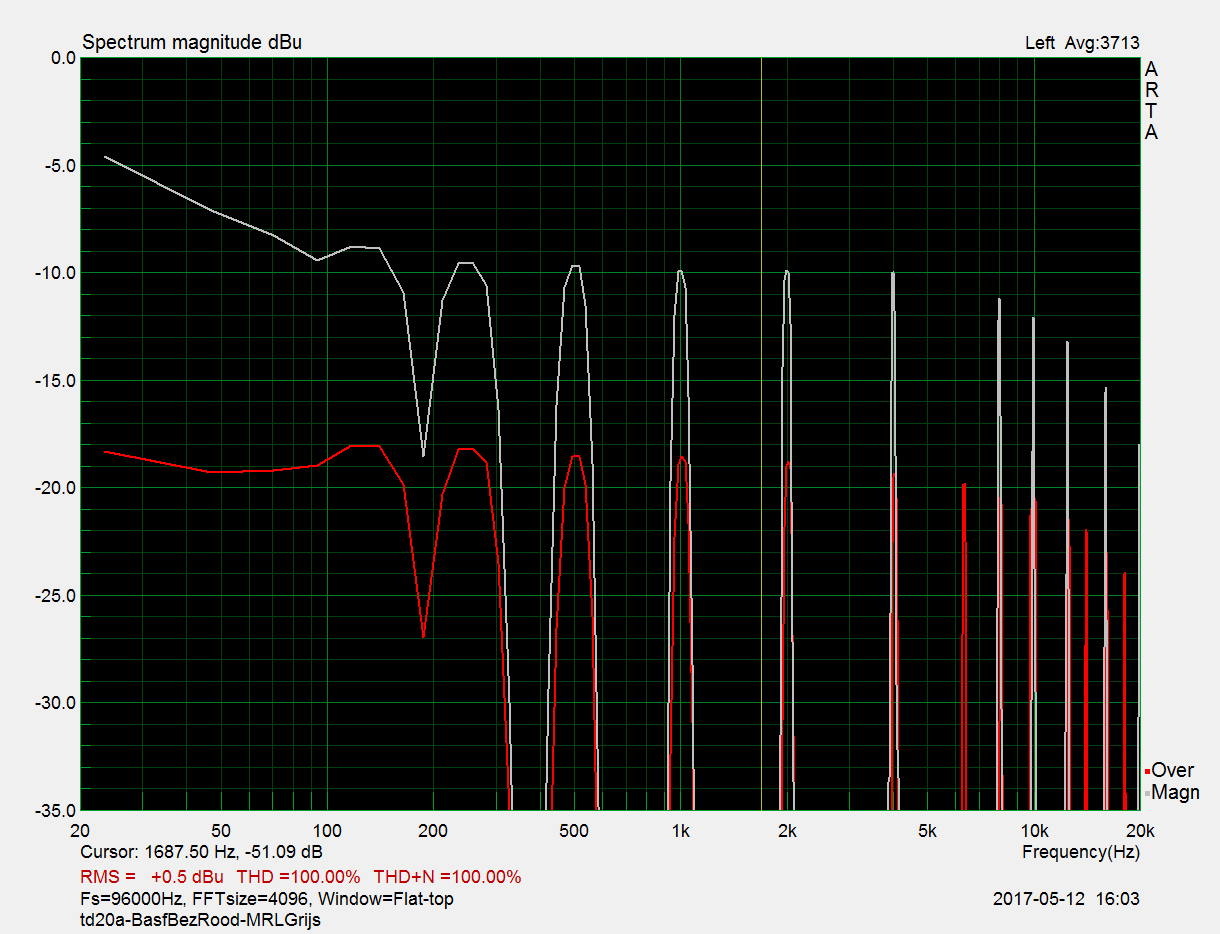

I was sure that could be improved upon, but I wasn’t sure what was going on. It could be that recording was the problem, or playback, or both. So I mounted not one, but two (!) calibration tapes to examine the playback frequency curve. The result was this:

The red line is a BASF Bezugsband and the white line is a brand new MRL tape. Apart from the difference in levels, which is solely for the purpose of the graph, the frequency run is fairly identical. There is fall off in the higher frequencies on both tapes. So there is a problem with playback at the least.

REMARK: the BASF tape is IEC, the MRL is a NAB tape.

head alignment

I continued to go through the complete Service Manual of the deck. Starting with heads alignment, that already gave some better high frequency response because you not only align the playback but also the rec head.

After that I followed the rest of the service manual and calibrated the levels, the bias and the freq. curve. After I was done, the result was spectacular:

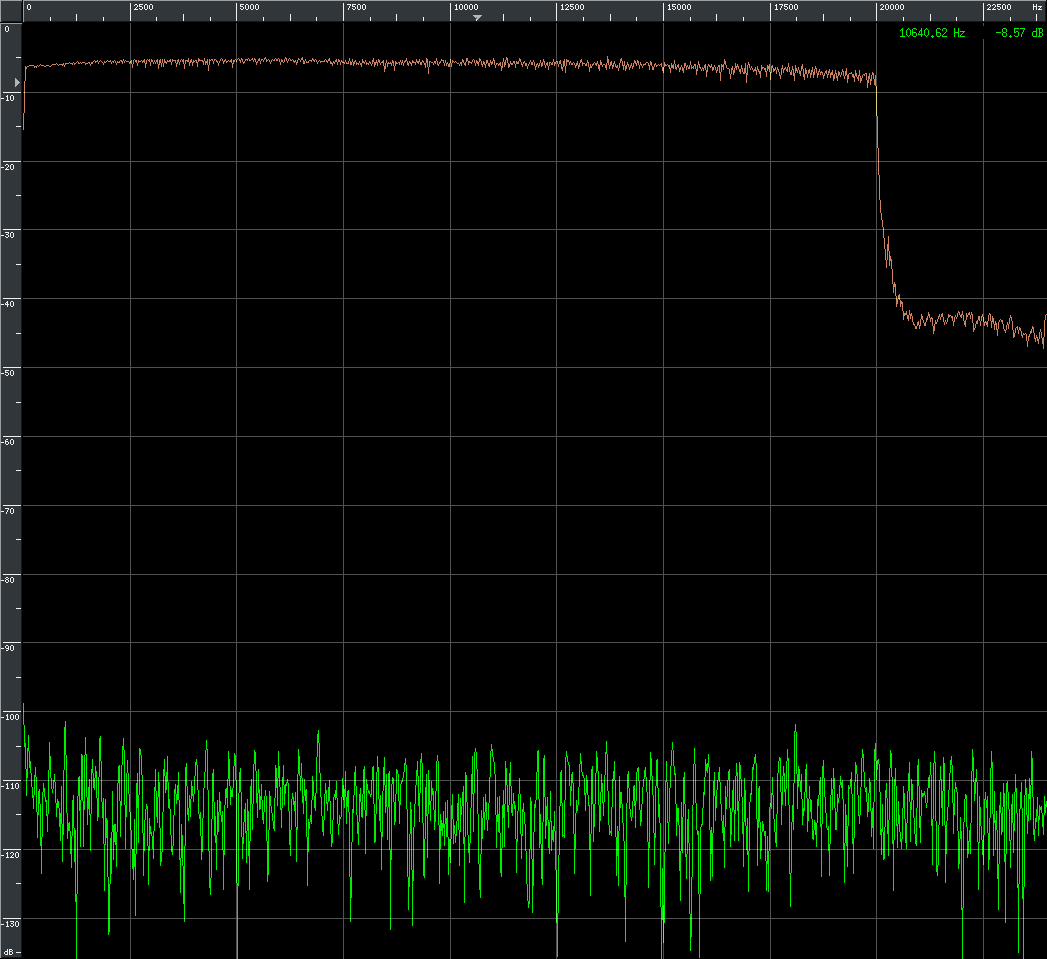

This is a recorded signal played back. The sweep is almost straight. At least as straight as I will (can) get it. The image comes from a new program that I found called BAUDLINE. It runs on linux and is very fast. I use the ‘peak smoothing’ feature to create a sort of peak-hold.

listening tests

After that was done, all the work I planned to do on it and that was necessary on it was done. The subsequent listening tests were a revelation: the deck sounds so good that even my trusty old Philips N4520 was left a bit behind. May need to rework that one as well sometime 🙂

Update:

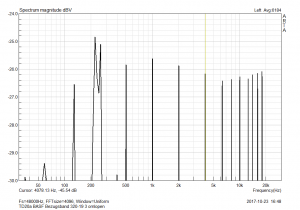

at the moment the frequency curve when playing the BASF Bezugsband is like this:

Note that the curve is straight within +/- 0,5 dB !!

(the part around 250 Hz is not testtones – it is the announcement of the tones on the tape)
